RetailPlayer TPA400

The scope of this document is to give a thorough introduction on RetailPlayer TPA400.

RetailPlayer TPA400 runs the RetailPlayer software. Refer to the user manual for a complete explanation on the software functionalities.

Package Content
  • RetailPlayer TPA400

  • 4 ways Terminal Block Connector

  • Quick Install Guide

The Barix RetailPlayer TPA400 is an audio over IP decoder which includes an amplifier to drive a loudspeaker.

Installation

STEP 1 Connect the loudspeaker

Connect any 2 to 8 ohm loudspeaker using the screw terminal connector. (device is optimized for 4 and 8ohms)

STEP 2 Connect to a PoE switch

Connect your IP Former to a PoE switch using a standard Ethernet cable (CAT5e or better). The class negotiated is Class 0, which will allow the switch to deliver up to the maximum capability per port (power available at PD for 802.3af <= 12.95W). IP Former drains maximum 6W.

When the device boots:

  • Right after power-up both status LEDs are red (boot in process)

  • 20s after power-up → Device announces its IP Address (take note to be able to enter the web interface later) → Left LED turns from red to green

  • 40s after power up → Application is ready → Right LED turns from red to green

RetailPlayer TPA400 is ready to be configured. Refer to the Quick Install Guide for a fast introduction on how to connect the unit with the Portal and play music.

Hardware Functionality

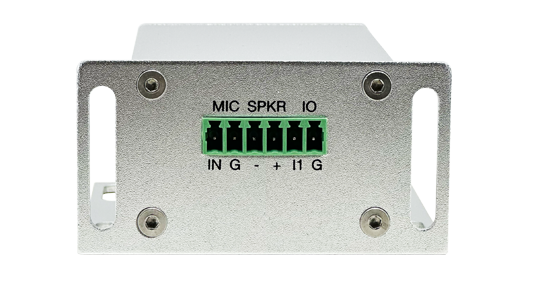

Front View

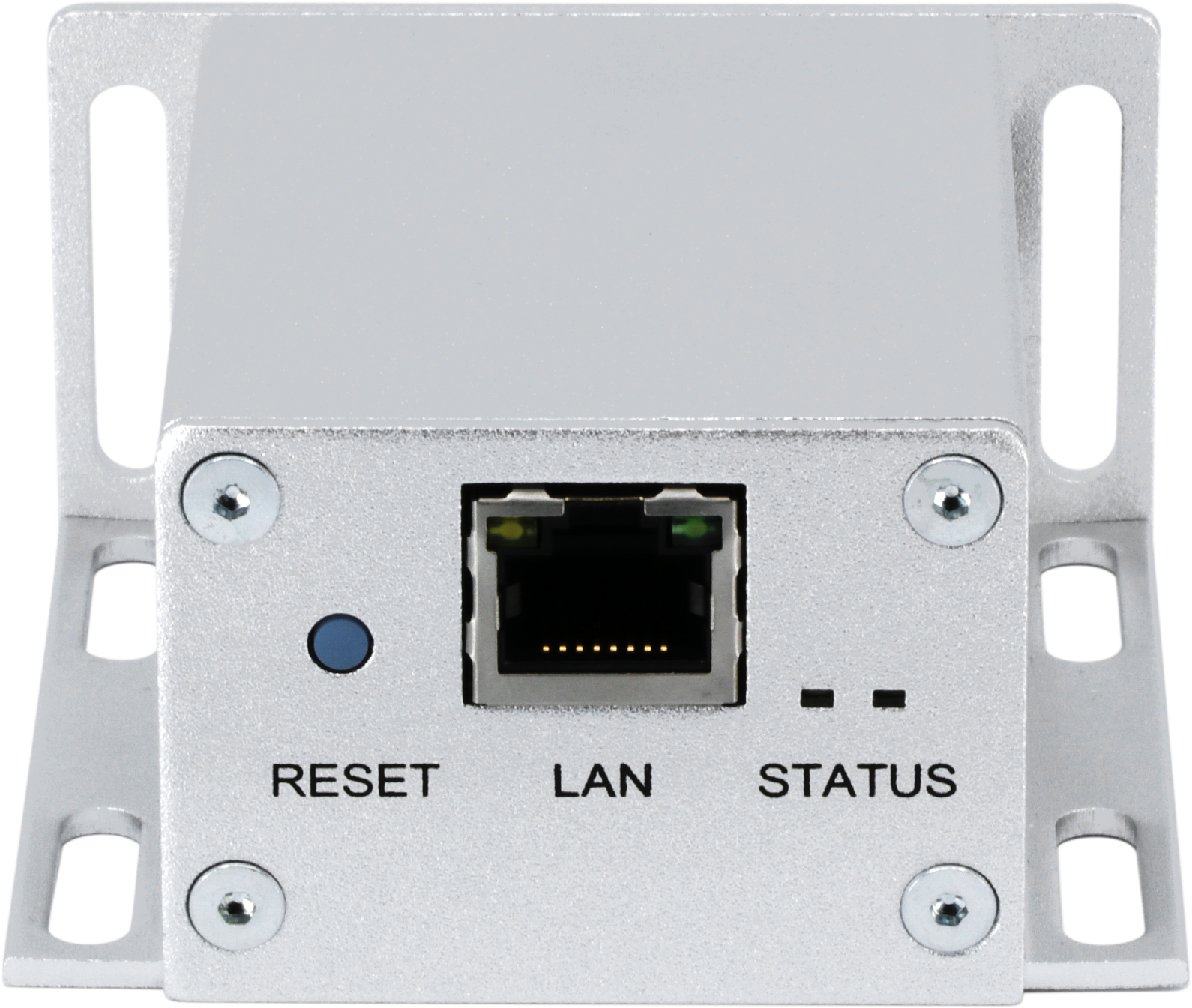

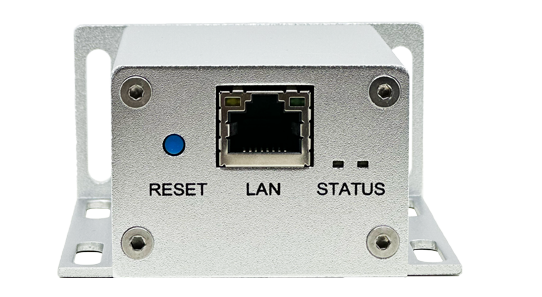

Rear View

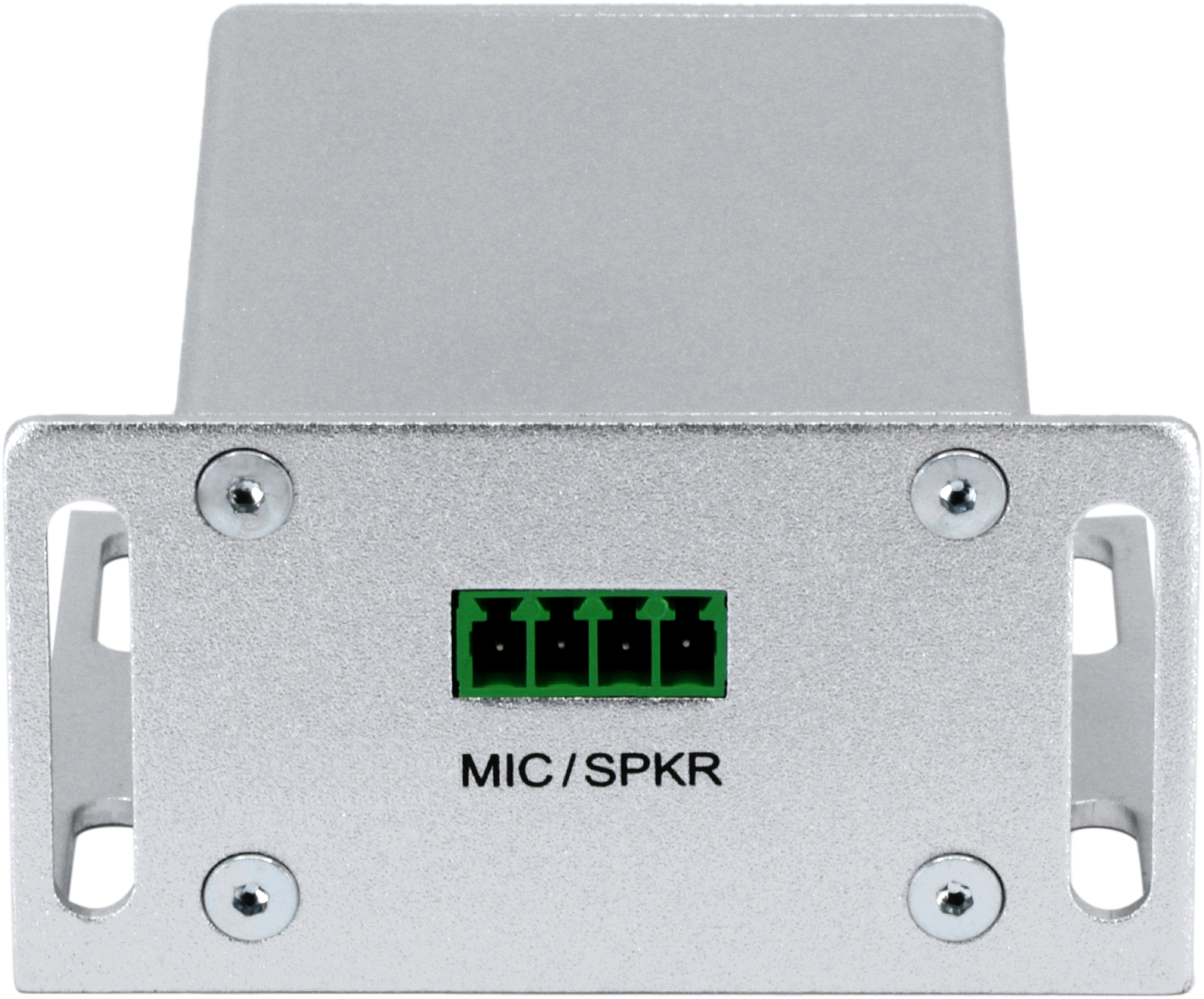

MIC / SPKR

From left to right as per picture:

Pin 1: Mic In

Pin 2: MIC GND

Pin 3: Spkr -

Pin 4: Spkr +

Reset

Short press while powered (1s - 9s) → Reboots the device

Long press while powered (10s - 19s) → Hard reset to defaults (including network settings)

Press and hold for 30s while powering up → Rescue process triggered: device will connect to the Barix update server and install the latest firmware

LEDs (see table below)

As per picture above:

  • Left LED: System LED - Indicates low level system operations

  • Right LED: Application LED - Indicates application functions

STATUS LED Behavior

Status LEDs description

Left LED
System
Static

Left LED
System
Blinking

Right LED
Application
Static

Right LED
Application
Blinking

Comments

System not powered

OFF

OFF

OFF

OFF

System booting

RED

OFF

LED1 blinks slowly during the boot up process

System in Rescue mode

ORANGE

OFF

As soon as device enters rescue mode, LED1 starts blinking YELLOW

Factory defaults setting (RESET button pressed >10s)

GREEN
(fast)

OFF

After 10s of holding RESET button pressed, LED1 starts blinking fast GREEN to indicate that the RESET button can be released and that the default factory settings will be applied (incl. Network settings)

System ready

GREEN

(see lines below)

(see lines below)

Check the descriptions below to see how the LEDs are supposed to behave once the system is “ready”

Application not running

GREEN

RED

Application running - Portal connection established

GREEN

GREEN

The application is running and the device established connection to the RetailPlayer Portal

Application running - Portal connection not established

GREEN

GREEN

The application is running but the device is not able to establish connection with the RetailPlayer Portal

Downloading/ Installing Firmware

ORANGE

GREEN

Compliance and further Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.

  • Increase the separation between the equipment and receiver.

  • Connect the device into an outlet on a circuit different from that to which the receiver is connected.

  • Consult the dealer or an experienced radio/TV technician for help.

Safety and precaution recommendations apply. Find them in the download section at www.barix.com

Find your distributor on this list for more hardware.

For questions that are extending the documentation, feel free to contact us on:

International: +41 434 33 22 22
USA: +1 866 815 0866
Email: support@barix.com

All information and the use of this product including all services are covered under the Barix Terms & Conditions and our Privacy Policy. Please follow the Safety and Precaution Recommendations. Barix is a ISO 9001:2015 certified company. All rights reserved. All information is subject to change without notice. All mentioned trademarks belong to their respective owners and are used for reference only.
