The scope of this document is to give a thorough introduction on the Exstreamer MPA400. At the end of this guide the user will be able to run a basic setup and have an audio stream playing.
MPA400 device with screw terminal block
Quick Install Guide
The Barix Exstreamer MPA400 is an audio over IP decoder with an amplified level output capable to drive 2 to 8 ohms passive speakers providing a max output of 40W (check power requirements)
STEP 1 Connect the Loudspeaker
Connect any 2 to 8 ohm loudspeaker using the screw terminal connector, check the polarity below in this page.
STEP 2 Connect the network
Connect your Exstreamer MPA400 to a PoE switch using a standard Ethernet cable (CAT5e or better). The class negotiated is Class 0, which will allow the switch to deliver up to the maximum capability per port. Exstreamer MPA400 supports all PoE standards up to 4PPoE (IEEE 802.3bt type 4).
Right after power-up both status LEDs are red (boot in process)
25s after power-up → Device announces its IP Address (take note to be able to enter the web interface later) → Left LED turns from red to green
60s after power up → Application is ready → Right LED turns from red to green
Exstreamer MPA400 is ready to be configured.
First Configuration - Play Barix Radio
From a PC in the same network subnet of the device, use a web browser to access the web interface by typing the IP Address into your browser (the one noted during boot)

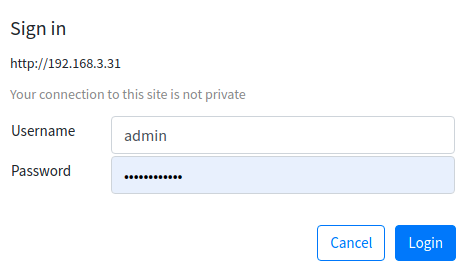

Login is required, by default user is "admin" and the password is provided on the sticker on the backside of the device (PW label)

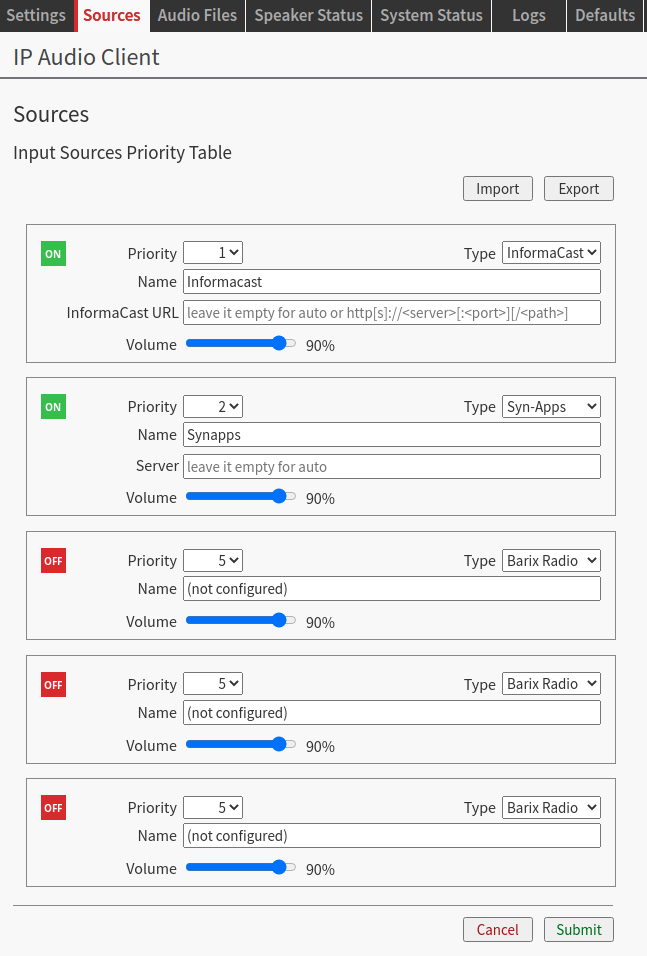

Select Barix Radio In any of the 5 layers from the Type drop-down menu, by default is already selected on the 3 bottom layers (all with priority 5), in this case simply switch the layer ON - It is a source pre-configured to play music from https://www.barix.com/radio.m3u
If desired, change the layer Name
Click on SUBMIT → After few seconds music will play

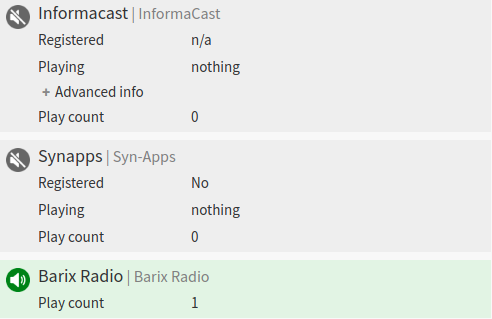

Check out the Speaker Status page to monitor the playback. When the source plays the corresponding layer turns green
Short press while powered (1s - 9s) → Reboots the device
Long press while powered (10s - 19s) → Hard reset to defaults (including network settings)
Press and hold for 30s while powering up → Rescue process triggered: device will connect to the Barix update server and install the latest firmware

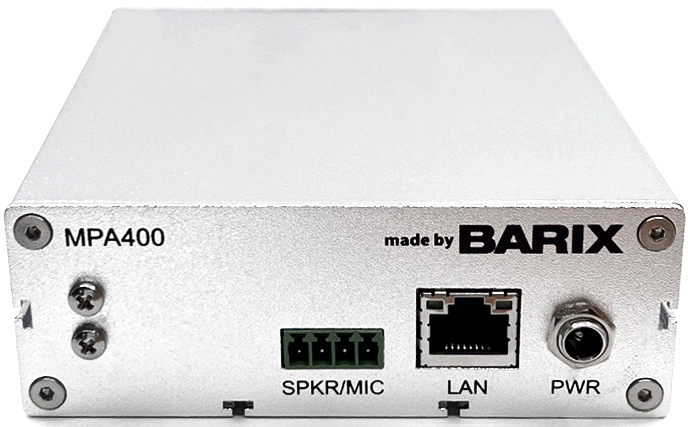

From left to right as per picture:
Pin 1: Spkr -
Pin 2: Spkr +
Pin 3: Mic GND
Pin 4: Mic +
2x USB Ports
10/100 Fast Ethernet network connection on RJ45
Supports all PoE standards:
802.3af / at / bt type 1 / bt type 2

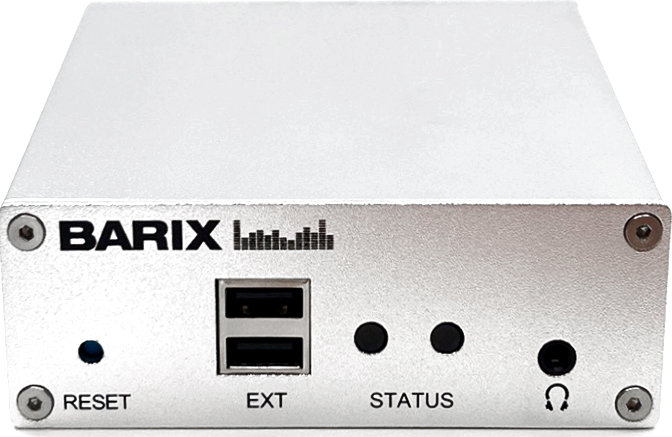

LEDs (see table below)
As per picture above:
24VDC, 50W max., thread-lock barrel connector 5.7x2mm inner positive.
mating connector diameter: 5.5x2.1mm
Not used on Exstreamer MPA400
STATUS LED Behavior
Status LEDs description
System not powered
LED1 blinks slowly during the boot up process
System in Rescue mode
As soon as device enters rescue mode, LED1 starts blinking YELLOW
Factory defaults setting (RESET button pressed >10s)
After 10s of holding RESET button pressed, LED1 starts blinking fast GREEN to indicate that the RESET button can be released and that the default factory settings will be applied (incl. Network settings)
(see lines below)
(see lines below)
Check the descriptions below to see how the LEDs are supposed to behave once the system is “ready”
Application not running
Downloading / Installing Firmware
For more details on IP Audio Client, the software running on IP Former consult the IP Audio Client user manual.
