Quick Install Guide
Package content and Prerequisites
Annuncicom PS Touch
XLR Gooseneck microphone
Version Note
The Annuncicom PS Touch can be ordered with IC-Paging or SimplePaging Firmware loaded!
The Firmware cannot be changed after ordering! If you want your PS Touch to run a different firmware, you have to ship it back to the Barix Headquarters!
Setup the Device

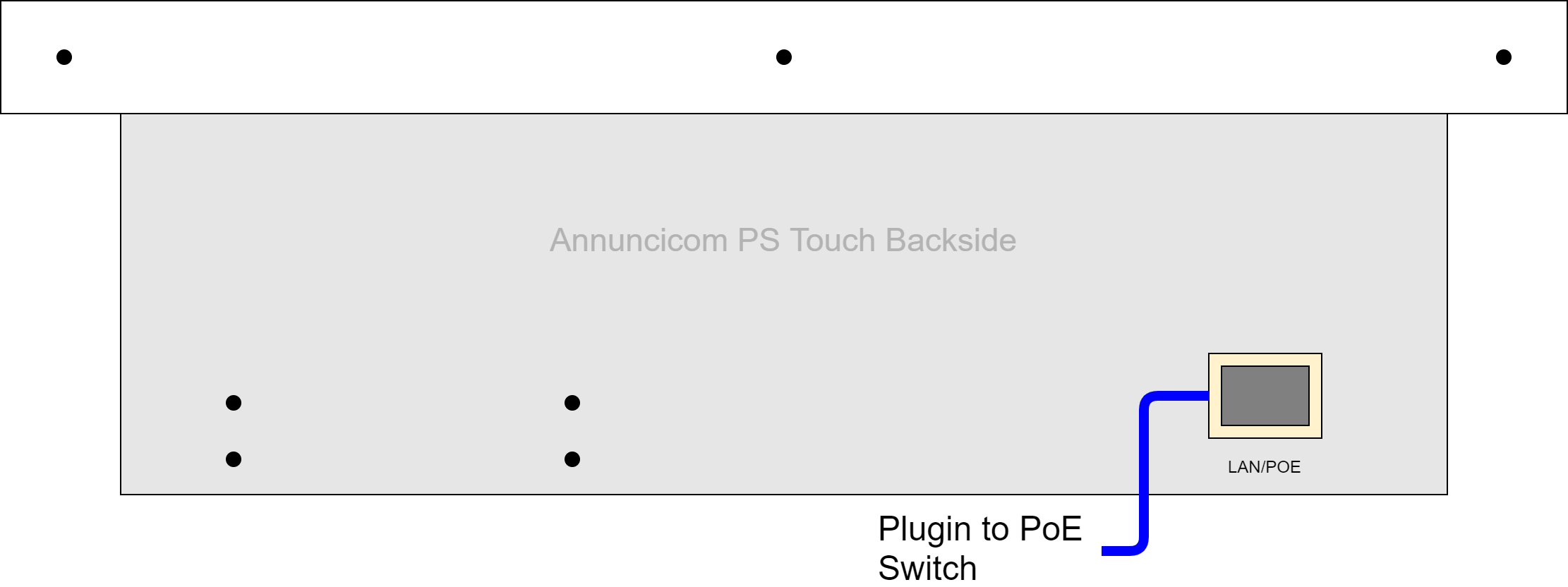

The Annuncicom PS Touch can only be powered over PoE, therefore you need to connect it to a PoE Switch!
After some time the Device will announce it's IP Address over the Loudspeaker. When entering the IP-Address into your Browser you will reach the Web Interface of the device, from where you can do the configuration! More Information about Sonic IP can be found here.
Device Configuration and User Manuals:
Further configuration can be done over the Web Interface of the PS Touch. Check the documentation for the firmware running on your PS Touch:
Simple Paging
IC Paging
Factory Reset
Resetting the device can only be done over the Web Interface on the "Factory Defaults" Tab!
If you have problems reaching the Web Interface of the device, download the Barix Discovery Tool, which allows you to change the IP-Configuration of the Device remotely.
Update
To update the PS Touch to the latest version, you need to download the latest PS Touch Firmware! Be aware that you need to have the specific Firmware file for The PS Touch. the normal firmware that runs on a PS1 or PS16 will not support the Touch Display!
Download the latest firmware version from the Barix Website!
Important
You cannot switch your PS Touch between IC-Paging and Simple Paging! If you need to change the Firmware type, you will need to send the Unit to the Barix Headquarters.
Compliance and further Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the device into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Safety and precaution recommendations apply. Find them in the download section at www.barix.com
Find your distributor on this list for more hardware.
For questions that are extending the documentation, feel free to contact us on:
International: +41 434 33 22 22
USA: +1 866 815 0866
