Simple Paging User Manual



Document Name:

1.1

Document ID:

20180219SG

Document Date:

19th February 2018

Document Version:

1.11

Product Name / Version

Simple Paging Solution / 1.1



1       Introduction

1.1  About this document

This document explains the Barix Simple Paging Solution; explaining the main system concepts and how to set up and use it. A simple worked example shows the steps involved to set up and use a  Barix Simple Paging PA / Paging system. The document also details the configuration options available for installation in more complex environments.

1.2  About the Barix Simple Paging Solution

The Barix Simple Paging Solution enables users to make public address announcements to up to 14 individual target groups, each of which can have one or more paging zones. Target selection can be made dynamically, combining individual Groups, or Paging to all zones. Announcements can be made from Barix Annuncicom Paging Stations (PS1 / PS16), or from iPhones,Pads or Android phones, using the freely available Barix Simple Paging app.

1.3  Features

The Barix Simple Paging solution works out of the box; key features are:

  • Make announcements from a fixed Paging head, or using a mobile phone when on the move

  • Superior audio quality

  • Mobile paging restricted to authorized users

  • Multiple Paging Heads

  • Paging Heads indicate when Zones are busy with announcements from other devices

  • Supports simultaneous paging to independent targets

  • Dynamic status indication to make maintenance easy

  • Modular and easily expandable

  • Supports zoned Background Music playback via multicast for low network traffic

  • Emergency Notification priority interrupt – highest priority page, interrupts normal announcements and Background Music

  • Optional 'pre-gong' chime before paging announcements

  • Supports multiple mobile paging configurations: one set of Groups for the Principal, another for Security!

  • Uses existing network infrastructure; no need for expensive, dedicated wire runs

  • A variety of hardware end points to suit each area in a facility

  • Independent volume setting for each Paging Zone

  • System secured using passwords


2       System Overview

2.1  System diagram

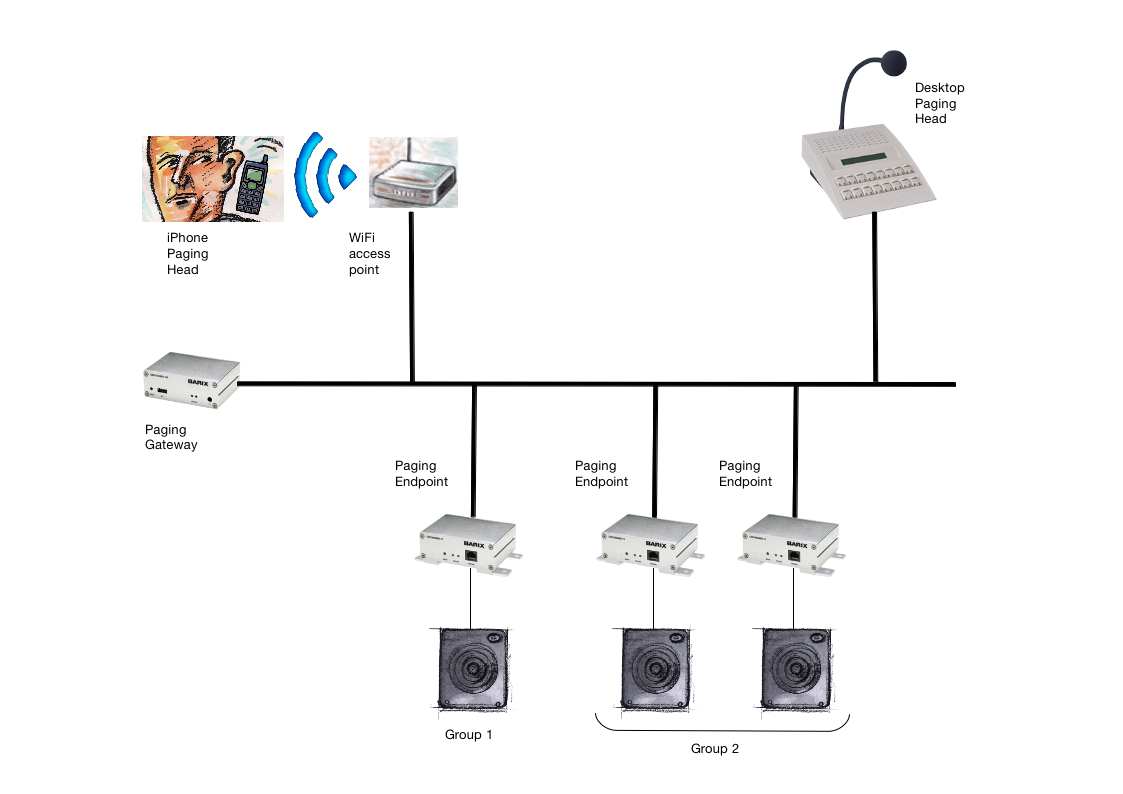

Illustration 1: Simple Paging solution components

2.2  System components

The Barix Simple Paging solution is based on a number of Barix devices that come ready to use, enabling to you set up a paging system in minutes.

Paging Heads, also referred to as Paging Masters, are devices where a public address announcement (page) can be made from. They can be Barix desktop units, or an iDevice for paging when you are on the move.

Announcements are relayed to Paging Endpoints, also known as Paging Zones. Simple Paging supports up to 14 distinct target Groups, consisting of 1 or more Zones. Paging Groups can be addressed individually, or dynamically combined to belong to a custom Paging Group relevant to the announcement being made at the time.

In case an iDevice is used, the system also need a Paging Gateway device, which acts to interface the iDevice into the Simple Paging solution. The Gateway is a standard Barix Exstreamer with the “Gateway” firmware loaded.

The Simple Paging solution requires that all devices are on the same LAN subnet, and when mobile paging is required, a wifi connection to this subnet must be provided. Use on VLANs is also supported.

By default, the system uses DHCP and broadcast messages, keeping bandwidth use  to a minimum; multicast addresses can also be configured for both Paging announcements and background music if required..

2.3  Supported hardware

Barix hardware

Paging Head

Paging Zone

Paging Gateway

Annuncicom PS16



Annuncicom PS1



Annuncicom 60



Exstreamer 1xx


Exstreamer 2xx



Exstreamer P5



Table 1: Device by function



Annuncicom PS16

Annuncicom PS1

Annuncicom 60

Exstreamer 1xx

Exstreamer 2xx

Exstreamer P5

Mic In (Bias)

Built in Mic

Built in Mic

Unbalanced

Mic Type

Built in Mic

Electret

Electret

Headphone out

Speaker Out

Built in 2W  & speaker

Built in 1W  & speaker

1 * 5W

2 * 25W

1 * 5W

Audio Output

Mono into  speaker

Mono into  speaker

Mono Unbalanced

Stereo Unbalanced

Stereo Unbalanced

Mono Unbalanced

PoE

Display


Table 2: Device hardware features

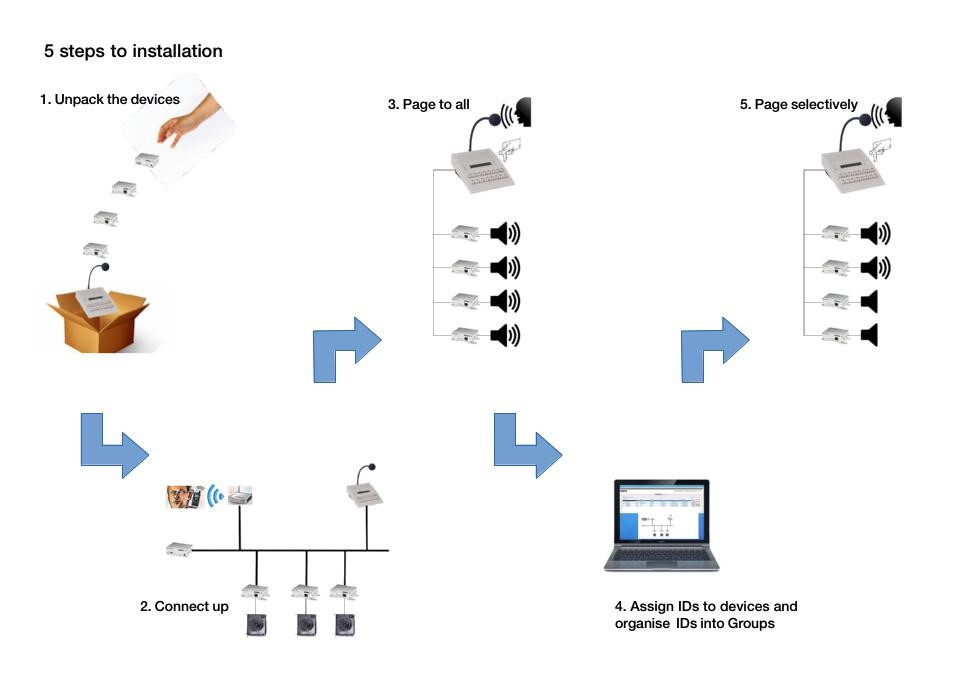

3       Steps to setting up a customised PA system

(1.) Out of the box and (2.) connected, you will be able to (3.) make announcements from any Paging Master station to all Paging Zones.

With (4.) a small amount of configuration, specific Paging Groups can be set up for both fixed and mobile announcements, allowing (5.)  targeted public address announcements to be made.

Optionally, there are a few advanced configuration features that may be required in more complex network environments.


4       Getting Started

4.1  Connecting the devices

Every Barix device comes packed with a Quick Installation Guide, which shows how to physically connect them up.  Once all components are in place, the system is ready to use.

All Simple Paging devices must be either on the same subnet, or the same VLAN as broadcast messages are used by the system to exchange status and control messages.

Depending upon the devices to be used, physical set up will typically involve connection of the device to network, power, loudspeakers and in some cases a microphone.

Depending upon the model, Exstreamer Paging Zones can be connected directly to loudspeakers, or in to some form of amplification system; for example an existing PA system.



Out of the box, the Simple Paging Solution is pre-configured with all devices set in Group 1. This means that after the physical installation an announcement can be made that will automatically be heard everywhere when paging to Group 1.


Masters also serve as Endpoints, playing out announcements addressed to them. This means that they will also replay any announcement from another Master, in this default configured state.

The default configuration is designed as a way to easily verify that everything is connected correctly. Before doing any further configuration work, validate the hardware by paging from the different Masters:


4.2  Making your first announcement from a fixed Paging Head

4.2.1                   Paging from PS1


The PS1 Master has two buttons on the front 'A' and 'B'. By default button 'A' is preconfigured to Group1. Button 'B' is not configured.

Press and hold button 'A' while talking, you will make an announcement to all Zones. Releasing button 'A' will end the announcement. By default the PS1 will play a 'pre-gong' attention chime when the paging button is first pressed; wait until this has finished before speaking.

4.2.2                   Paging from PS16

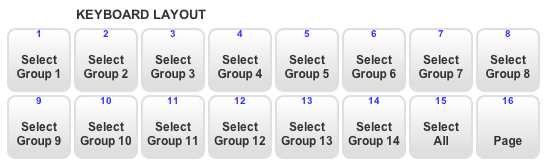

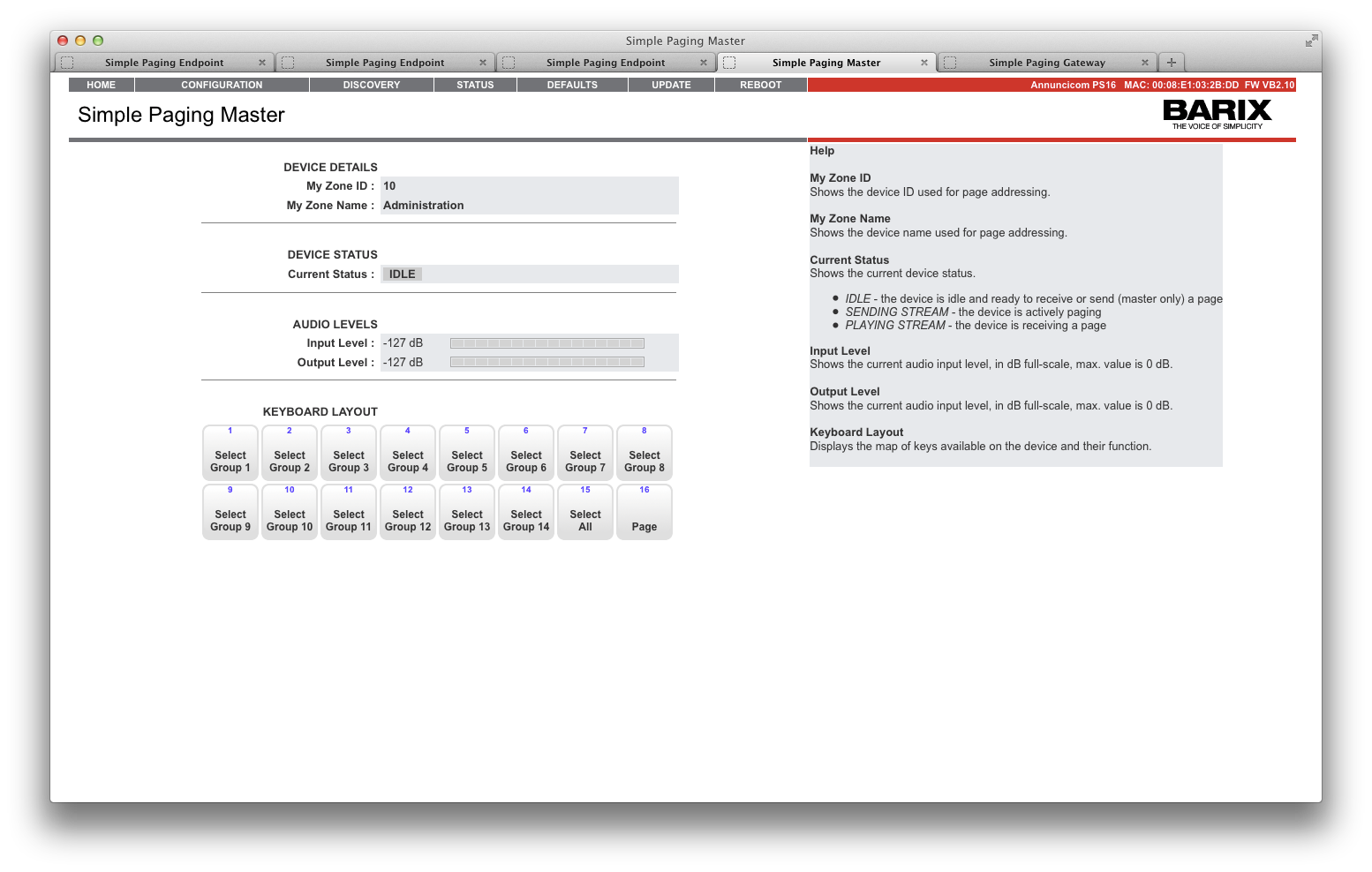

The PS16 Master has two rows of buttons mapped as shown;


By default all Zones are available in Group1 and no other Groups are configured.

Select Group 1 by pushing the button “Select Group 1” once, two yellow LEDs will indicate the Group is selected. Press and hold down the “Page” button; the PS16 will play a 'pre-gong'  chime when the 'Page' button is pressed; wait until this has finished before speaking, keeping the button pressed until finished (PTT). Releasing the “Page” button will end the announcement. To clear the Group selection, press the Group button again.

4.3  Make your first announcement from an iPhone or iPad

4.3.1                   Prerequisites

The Barix Simple Paging app is free to download from the Apple app store and requires iOS 6.0 or later. Download the App onto your iDevice.

To make announcements from an iDevice, you must have a Paging Gateway device installed and configured with the Paging Groups that you want to use.

4.3.2                   Connecting to the system.

Select the correct wifi network on the iDevice, and then start the Simple Paging App. On startup the App will automatically search the network for the Gateway device.

The Paging Gateway is the interface between the iDevice and the Simple Paging Solution, it must be present on the network to enable paging from iDevices. When the Gateway is found by the Simple Paging App, it will automatically show the Groups available for paging.  Before any configuration is done, all devices are automatically created in a default 'Group 1'.

4.3.3                   Paging from iDevice

To make an announcement from the iDevice, tap the 'Group 1' icon;

  confirms that the group is selected.

Tap the microphone icon

 then start talking.

By default all Zones are in Group1 and the announcement will go to all Zones.

To end the announcement, tap “Stop Paging”

Note: You cannot page to an iDevice


4.4  Paging Groups

If the paging needs are as simple as 'Page to All', no further configuration is required, but if more flexible paging is needed, Paging Groups need to be defined.

Bespoke Groups can be setup on all Paging Masters and on the Gateway for iDevices.

When paging from a PS16 or iDevice, one or more Paging Groups can be selected as the target for the announcement.

On the PS1 two individual Groups can be defined, on the PS16 and the Gateway 14 Groups can be defined.

Paging Groups can be defined using either the Simple Paging configuration tool, or directly on the device using the web UI. The configuration tool allows you to set up your Simple Paging solution from a single place, simplifying the work to be done and requiring much less time. Group configuration using the web UI is explained later in this document.

  • Download the Simple Paging Configuration Tool from the Barix website

  • Unzip the package and double-click on the file “ConfigTool.jar”, or run the file from a command line “java -jar ConfigTool.jar”

 The tool will start and automatically discover all online Barix Simple Paging Solution components on the network. If no devices are shown, try changing the network interface that the tool is using by clicking on the “Advanced / Network Interface” menu, then selecting the appropriate network interface.

In the example below there are 3 Paging Zones available: a lone unit in Group 1 'Hallway' and two devices in Group 2 'Classrooms'.

4.5  Zone Names and IDs

4.5.1                   Explaining Paging Zone Names and IDs

Every Simple Paging device has an “address” called the “Zone ID”, which is used within the system to identify them, send audio to them and to exchange status information. 'Out of the box' every device has a Zone ID of 1, and all Masters are setup to have a Paging Group 1 that talks to devices with the ID of 1.

This means that when devices are connected up for the first time, a Paging Announcement, made to Group 1 will go to all Paging Zones and all other Masters.

Optionally, a Zone Name can also be assigned to each Zone. This name is used in the Web UI, Config Tool and iPhone App to refer to the Zone to make it easier to remember.

  • Creating different Paging Groups is simply a case of telling each Paging Head “this Paging Group consists of the following IDs”, and assigning the IDs to the relevant devices.

  • Many devices can share the same Zone ID if required, the result is that these devices will always make announcements at the same time  – useful if you have 3 Paging Endpoints in a long corridor, for instance.

  • A Zone ID can be included in multiple Paging Groups.

  • If a device must be individually addressable, it needs a unique Zone ID assigning to it.

  • All of the Barix Simple Paging devices share information, which allows them to understand what other components are present and display status information about the system as a whole.

The example uses the following IDs and names for the devices:

Zone ID

Zone Name

Device

Group

10

Administration

Annuncicom PS16


128

Paging Gateway

Exstreamer 100


11

Assembly Hall

Exstreamer P5

Group 1 Hallway

21

Juniors

Exstreamer P5

Group 2 Classrooms

22

Seniors

Exstreamer P5

Group 2 Classrooms


The Zone ID can be any integer from 1 to 127. The ID=128 is reserved for the Gateway and should not be used by any other device.

Note, when using multiple Paging Heads (masters) in one installation, then each Paging head device needs an unique ID below 127 (or 128, if no gateway is used)! Make sure you address these correctly.


The Zone Name is a 15 character string allowing use of characters, numbers and blanks.

4.5.2                   Assigning Zone Names and IDs with the configuration tool

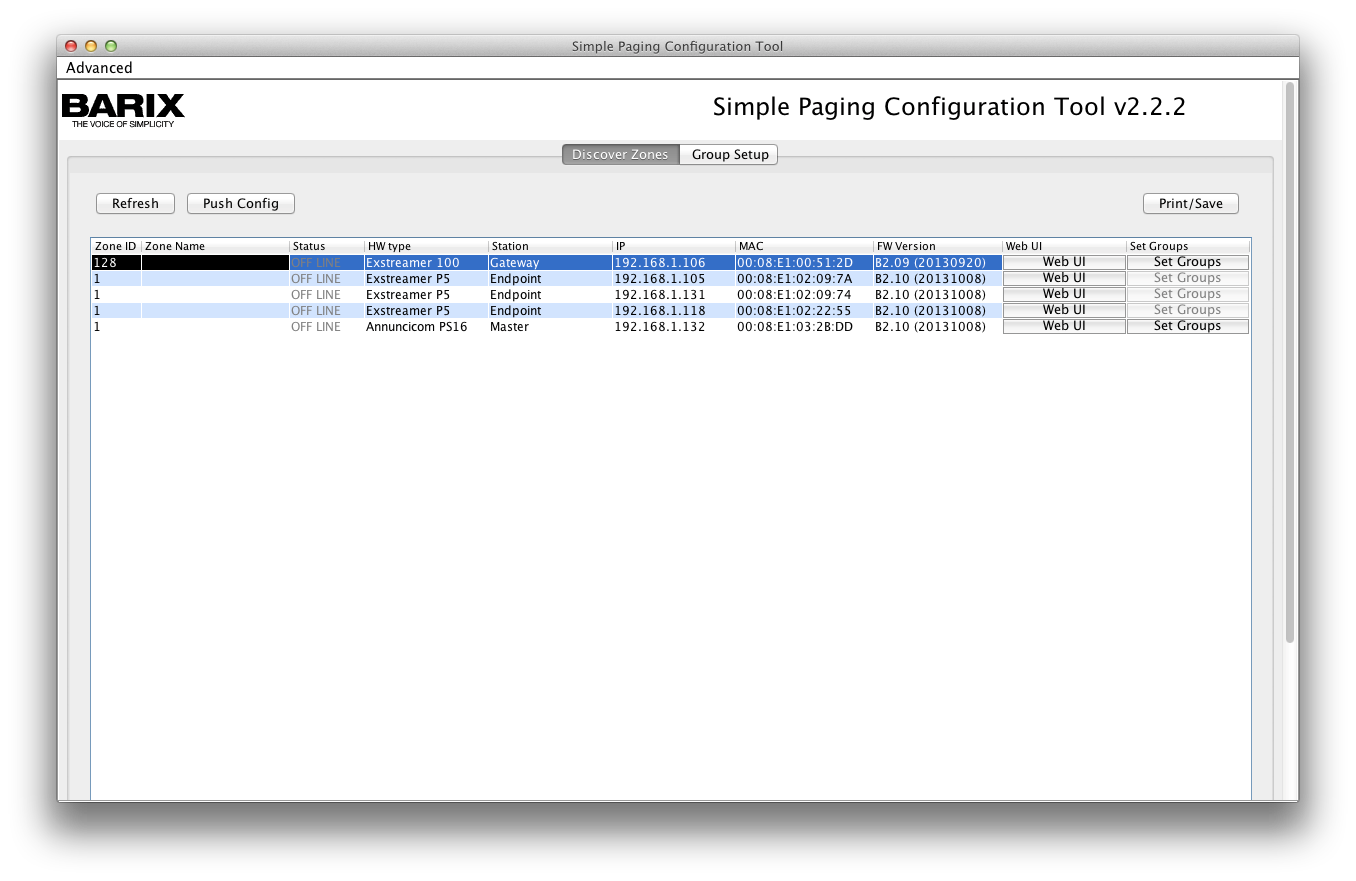

On startup the tool automatically finds and reports all Simple Paging devices on the network.

The fields in the columns Zone ID and Zone Name are editable. Click on the cell and enter the desired ID or Name. One or more devices can be edited. Modified fields not yet sent to devices are shown in blue.

Once all changes are made, click 'Push Config'. The new settings will then be sent to the devices, which will automatically reboot to activate them.

To abandon changes before sending them to the devices: clicking “Refresh” will reload the current settings from all devices.

During the update the tool will report the devices going off-line and then being available again with their new ID and Name.

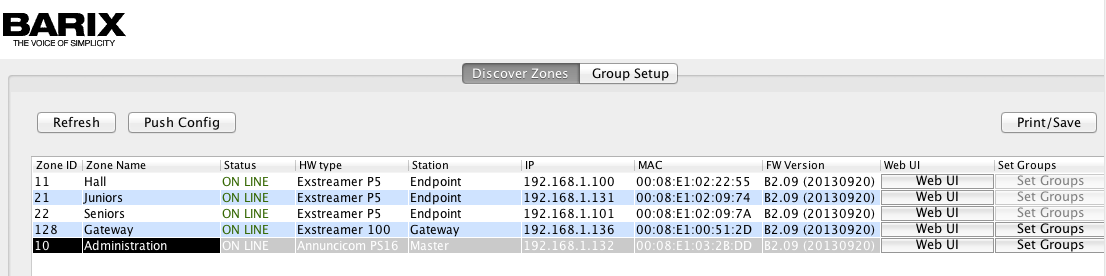

Setting the Zones / IDs for our example above, the tool will now display:

4.6  Setting up Paging Groups


Once the Zone IDs have been allocated, Paging Groups can be set up. This is done by adding one or more IDs to a Group. The process is the same for both Paging Heads and Paging Gateways. Groups defined on the Gateway automatically appear on connected iDevices running the App.

Any Zone can be used in one or more Groups. There is no practical limit to the maximum number of devices in a Group.

Defining Paging Groups using the configuration tool

With the tool running in the “Discover Zones” view, either click on the “Set Groups” button on the right hand side of the relevant device's entry, or change to the “Group Setup” view by clicking on the tab above the device information and then select the desired Master from the drop down list box. This example uses the group setup for the Gateway.

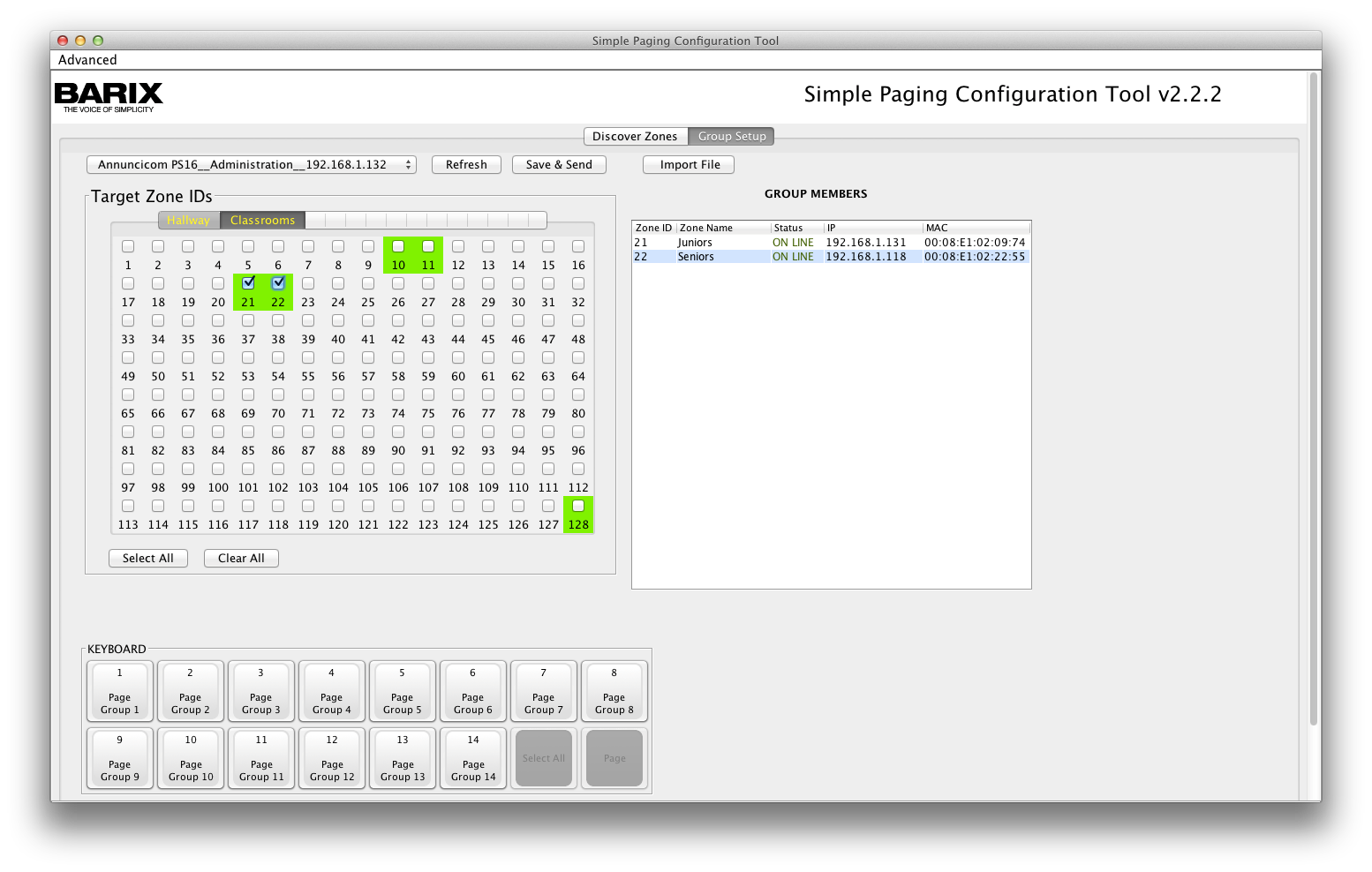

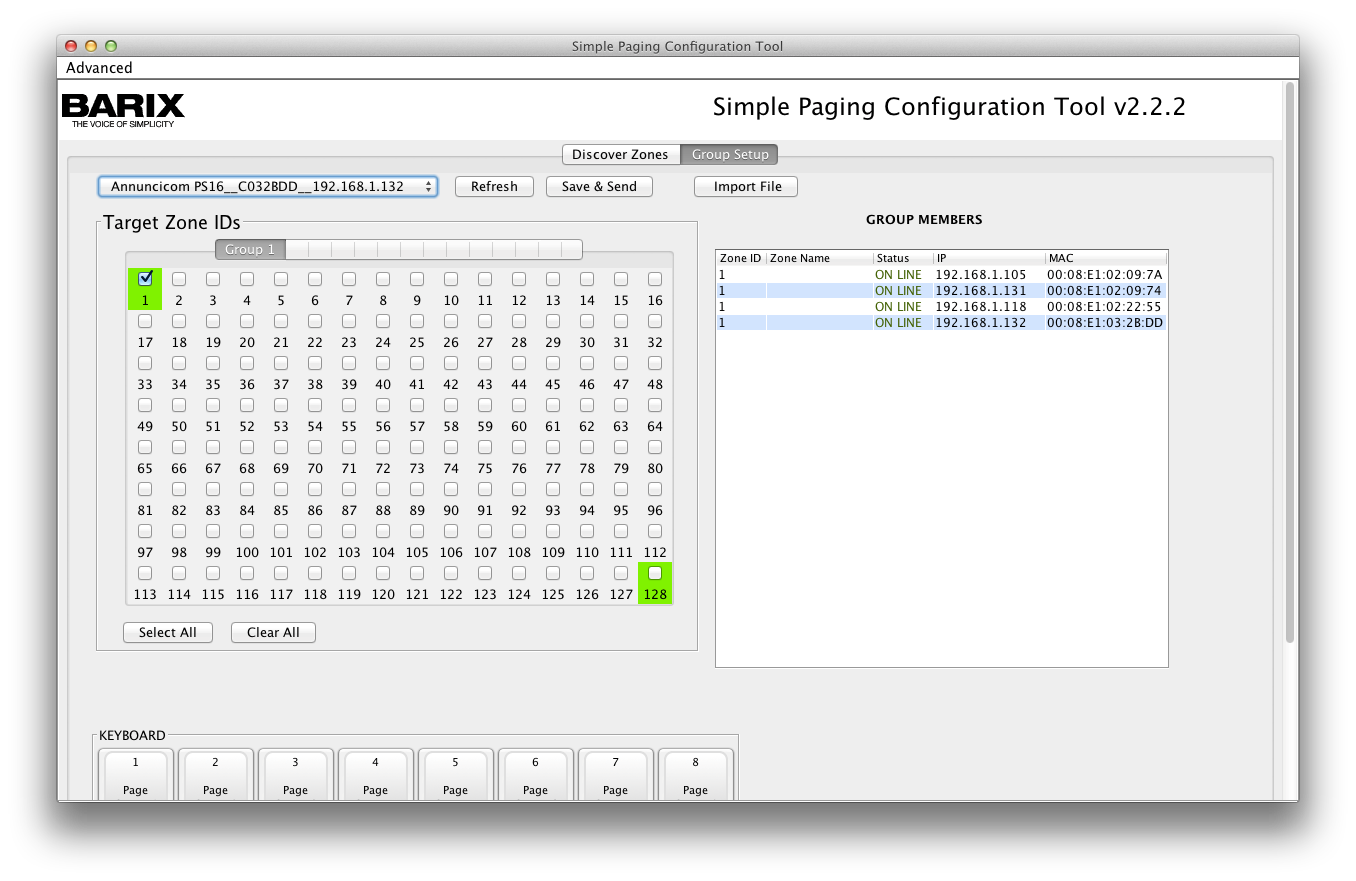

The tool switches to the Group Setup view, showing a matrix with 128 IDs on the left and current Group members on the right. IDs highlighted in green are active on the network.

Above the matrix is a series of Group tabs, by default only 'Group 1' is set. First select the Group to define by double clicking on its tab and giving it a name, then simply click on the IDs in the matrix to add them to the Group. As IDs are added, all devices with that ID appear in the “Members” box to the right.

To setup the system in the worked example, first select the Gateway, then double click on 'Group 1' and set the name to “Hallways”, then tick ID=11 in the Matrix.


Then select the second group tab, name it “Classrooms” and select ID=21 and ID=22 in the matrix. The Group Setup on the configuration tool should now look like this;


Click on “Save & Send”. The configuration file will be saved locally, then sent to the device, which will reboot to save and activate the changes.

To set the same configuration on the PS16, select it from the Master pulldown list on the 'Group Setup' tab, then click “Import file” and select the file just saved. After it loads, click “Save & Send”. The device will reboot and have the same Group configuration. Each Master can also have completely independent groups if required.


4.7  Secure mobile paging: set a password on the Gateway device

Since the Barix Simple Paging App is freely available on iTunes, it is important to protect the paging system from misuse, by setting an access password.

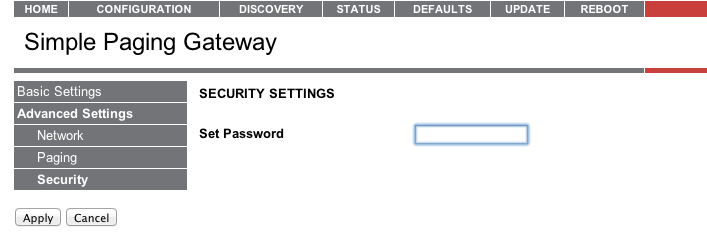

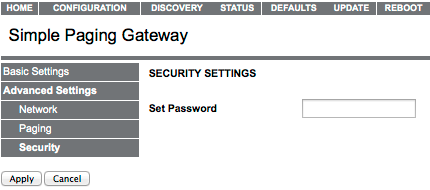

This is done on the Paging Gateway web UI. In the tool's “Discover Zones” tab, click on the “Web UI” button next to the Gateway device. Your PC will open a browser tab with the Gateway's web UI being displayed. Click on “Configuration”, then “Advanced Settings”, then “Security”.

Enter a sensible password into the box and click “apply”. The Gateway will reboot. This password controls:

  • access to the Gateway UI

  • access to the Gateway from the Barix Simple Paging app: needed to make announcements










The Gateway will prompt for a UserID / Password whenever you try to access the web UI. The UserID should be left blank, only the password needs to be entered.

After a Gateway password is set, all iDevices will be forced to enter the same password before being allowed to connect to the Paging Gateway. The password is stored in the App and only needs to be entered once.




4.8  Paging to a Group

After Groups have been configured, you can now page to these groups by selecting them on the Master or the iDevice. On a PS16 Master, or an iDevice, any combination of groups can be dynamically selected. By default Barix Paging Heads will make a 'pre-gong' chime both locally at the Master and remotely at the selected paging targets. Live audio will only be sent from the Master once this pre-gong has sounded.

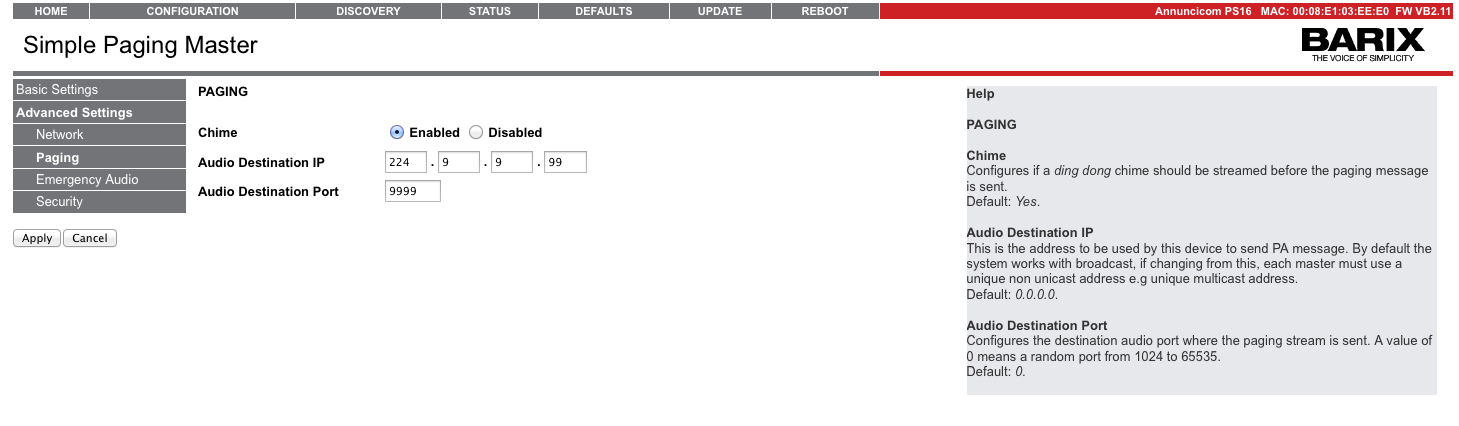

If the pre-gong chime is not required, it can be configured off; see section 8.1.4 Advanced Settings: Paging.

4.9  Integration with Background Music and Emergency Notification systems

Many Public Address systems also incorporate zoned background music playback and the requirement for an Emergency Notification override; Barix Simple Paging supports both of these features at the device level, enabling the system to play out relaxing music in the spa and  workout tunes in the gym!

Audio Volume: Typically Emergency messages are required to be at a higher volume than BGM or standard Paging announcements, with Simple Paging, each audio source has its own associated volume.

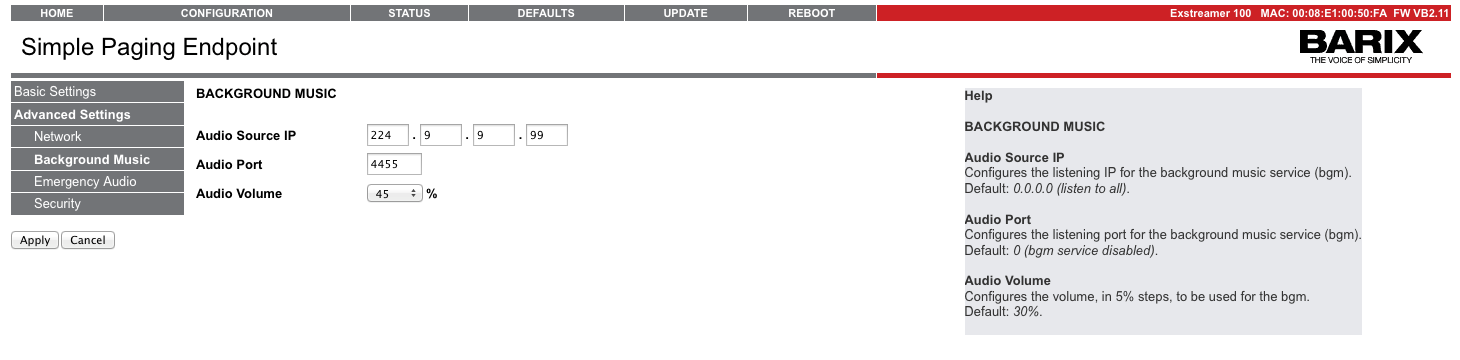

Audio Format: The incoming audio for BGM and Emergency Audio must be contained in an RTP stream in a Barix supported audio format: mp3, PCM uLaw/aLaw.

Audio Source Priority:

Emergency audio has the highest priority and will override any other audio source,

A Paging message has middle priority – will interrupt BGM playback, but in turn be dropped if an Emergency Announcement is made

Background Music has the lowest priority and only plays if no other source is active.

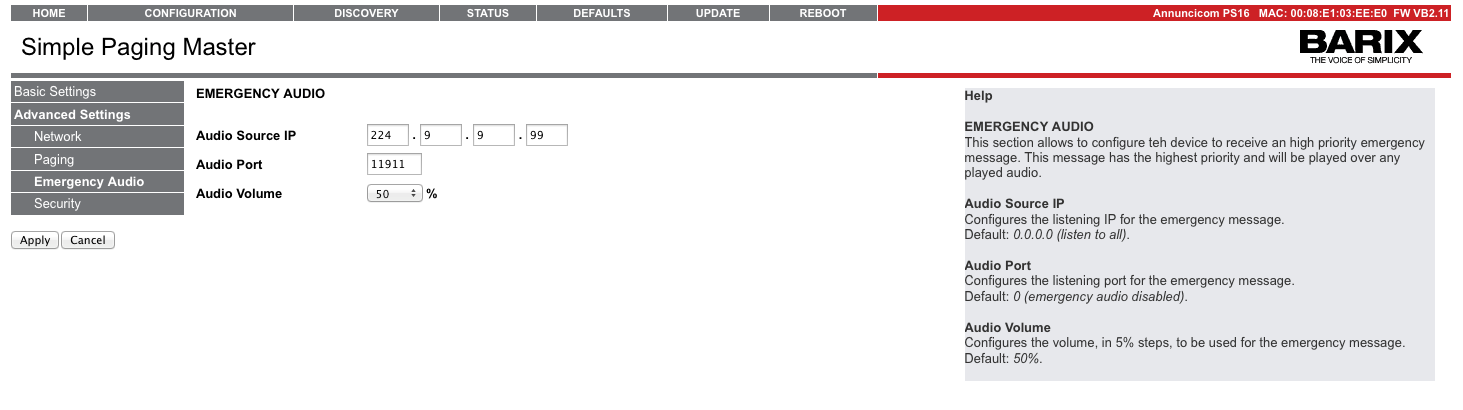

Refer to chapter 8 for details of how to configure individual Simple Paging devices to support these services.

5       Using Simple Paging

The Simple Paging solution supports simultaneous announcements from different Masters and at the same time provides a number of features for reporting status and potential issues.

Below is an overview of the actions and notification features.

5.1  Making Announcements

Step

Action

PS16

PS1

iPhone

1

Select Group(s)

Press each of the target Group buttons to select: the LEDs will light.

Press and Hold “A” or “B” button

Tap target Groups

2

Make Announcement

Press and hold “Page” button (PTT)

Keep button pressed

 (PTT)

Tap

3

Mute microphone

Not supported

Not supported

Tap

4

End Announcement



Release Button

Release Button

Tap “Stop Paging”

5

Clear Group selection

Either:

1. Press each selected Group button again, the LEDs will go out.

Or

2 Press the 'Select All' until all LEDs go out

No action necessary

No action necessary


5.2  System Feedback

Meaning

PS16

PS1

iPhone

System Idle

Simple Paging Ready

Solid Green on 'A'

No Icon

Group(s) selected

Solid yellow LED on Group key(s)

---



Sending Page

Paging

Flashing Red on 'A'

Paging

Incoming page

Receiving From

Flashing white on 'B' and green on 'A'

----------

Device(s) in Group Busy

Flashing yellow LED on Group key(s), 'Buzz' when Group is selected indicates the Group is blocked.

Flashing Red on 'A'

'Buzz' when Group is selected indicates the Group is blocked.


Group will not select

Device(s) in Group Offline

Flashing yellow LED on Group key(s)

Flashing Red on 'A'


6       Simple Paging App options

The App has a number of helpful features not needed in normal operation:

6.1  Multiple Paging Group profiles

By setting up several Paging Gateways on the system, it is possible to support Profiles for different User Groups. For example the Principal and the Security Department may need one set of privileges, 1st Grade teachers a different one.

Each iDevice can be tethered to a specific Paging Gateway, by configuring the Gateway's MAC and IP addresses in the Simple Paging Settings option via the iPhone 'Settings'. Assigning different passwords for each Gateway ensures that Users stay in their assigned Profile.

This mechanism also allows the Simple Paging system to be on a different subnet to the wifi; the Paging Gateway bridges all of the necessary control and audio signals between the app and the devices.



Illustration 2: Unset, the app will search and attempt to connect to any Gateway

Illustration 3: By defining a particular Gateway, the App locks to it on startup

6.2  Detailed status drilldown

If a Group shows busy, or a device in error, it is possible to identify which device is affected. From  the 'Paging' screen, tap the 'Details' button in the top right corner: a list of groups will appear.

In the list of groups, those marked with red are either busy or off-line, those marked with green are ready to be paged to.

Tapping on a Group will produce a list of Zones in the Group. The Zones listed are also marked in green or red for easy identification of any issues.

Each Zone is clearly identified in the first line by its Zone Name, followed in line two by the IP address and unique MAC address. The Third line shows the type of device, it's Zone ID, and its status. It is here the source of the problem can be identified.





6.3  Paging to Group(s) in 'Warning' state

It is possible to select and make a paging announcement to a Group that is showing the warning icon. The message will be sent to all Paging Zones in the Group that are NOT affected. It is the responsibility of the user to make sure they understand which Zones will not receive the message.

When users see the warning triangle, they should advise their IT Support, so that the problem can be investigated and fixed.

6.4  Changing the default IP address and Port used for the audio messages

The Paging Gateway interfaces the audio from iDevices into the Simple Paging System, refer to the Web UI configuration section 8.1.4 “Advanced Settings: Paging“ of this document for more information.

6.5  Limitation

The current release of the Simple Paging App supports a maximum of 32 Paging Zones.



7       Simple Paging Configuration Tool features

7.1  'Advanced' menu: Network Interface selection

Many PCs have multiple network interfaces. To select which one the Configuration Tool uses, click 'Advanced' / 'Network Interface' then select the network interface you want to use.

7.2  Discover Zones view

The Configuration Tool starts up in the 'Discover Zones' view, showing all discovered Simple Paging components. The online / offline status indicates whether the device is responding at a low level to discovery requests; note, it does not guarantee that the device is ready for Paging.

The basic use of the Simple Paging Configuration Tool to set device Zone IDs and Names and to set up Paging Groups was described in Chapter 4. There are other useful features:

7.2.1                   Text Colour coding

Text in the tool is displayed in Black normally.

Blue text shows that a device parameter has been changed, but the change has not yet been pushed / sent to the device.

Red text indicates when there has been a problem communicating updates to a device.

7.2.2                   Refresh

This button will cause the tool to get and display the current active configuration details for the devices, it can be used to abandon any changes made, but not sent.

7.2.3                   Push Config

The Push Config button is used to send updated Zone ID / Names to the affected devices.

A progress bar is shown during the push operation and user interaction with the tool is blocked until the operation is finished.

The tool sends the updates to each device in turn. When a device requires a password for authentication, a pop-up window appears for the user to supply it.

Note: the User has only one attempt per device. When the password is not entered correctly, the corresponding device is marked in red and the Zone ID and Name values are restored to previous values, discarding the changes. The User can inspect devices in error and then redo config changes in a second attempt.

7.2.4                   Password handling

Any or all of the Barix devices can have security passwords set. When required, the tool will prompt the user to enter the necessary passwords.

The tool remembers the last used password in every session and will try this first when it is next required to supply a password.

If the stored password does not work, the tool prompts for a new one to be entered

If the password is not successfully entered, the tool will abandon the current operation. The tool tackles multiple device updates sequentially, so it is possible that some devices receive an update and others don't. In this case, the affected devices are highlighted in red text.

7.2.5                   Print / Save

navigates to a view containing the device information, plus a freely editable column for Installers' notes. This view can then either be printed, or saved as a .csv format file, for inclusion in the user's own installation documentation.

7.2.6                   Web UI button

On each Device entry in the 'Discover Zones' view, there is a 'Web UI' button, which will launch a browser session directly on the device's web interface, giving access to more advanced configuration options for that specific device, see chapter 8 “Device Configuration via Web Interface“.

7.2.7                   Set Groups button

Switches to the Set Groups view

7.3  Set Groups view

This view shows the Group configuration for a specific Paging Master device. The Master can be selected from the drop down list in the top left of the view.

  • On the left there is a matrix representing 128 Zone IDs under the heading “Target Zone IDs”.

  • Above the matrix is a series of tabs, one for each of the Paging Groups supported by the device. Zone IDs assigned to the current Group are indicated by a tick in the matrix.

  • On the right is a box displaying details of the members of the currently selected Group

  • Underneath the matrix, the keyboard layout for the current Master is shown.

7.3.1                   Text Colour coding

Text in the tool is displayed in Black normally.

Yellow text shows that a device parameter has been changed, but the change has not yet been pushed / sent to the device.

Red text indicates when there has been a problem communicating updates to a device.

7.3.2                   Refresh

This button will cause the tool to get and display the current active configuration details for the devices, it can be used to abandon any changes made, but not sent.

7.3.3                   Save and Send

Click to push changes to the Master device. The configuration data is first saved in a “.ini” file in the application folder, using a predefined name pattern (DevType_DevName_IP.ini), which the tool reports. Next the updated configuration is sent to the device, which will apply it and reboot.

If the user selects a different master from the drop-down list without first saving any changes that have been made, a warning pop-up will appear. This gives the user the opportunity to save or abandon the changes before changing the view.

7.3.4                   Import File

Using the configuration tool it is possible to load a saved configuration into a device, enabling quick an easy setup of multiple Paging Heads.

This button opens a file browser control to find and load a previously saved group configuration “.ini” file. Note that all tabs will become shaded after this operation to indicate that configuration is obtained  by means of the import functionality. The User can further modify the groups before updating the device using the Save & Send button.

7.3.5                   Defining Paging Groups

To change the Group Name, double click on the tab and then change the text as required. 'Enter' finalises the change.

To change the Group members, select the Group by clicking on its tab and then within the matrix, click with the mouse in the box corresponding to the ID(s) you wish to select / remove. A tick indicates that the ID is selected and the details of the device will appear in the members list if the device is online.

IDs shown grey in the matrix are offline, green highlighting means that at least one device with that ID is online.

8       Device Configuration via Web Interface

In some cases it may be necessary to perform extra configuration to ensure perfect operation of the Paging solution. The web UI for the Paging Master, Endpoint and Gateway are broadly the same: A home page with some basic information, plus tabs for:

  • Configuration – of the device

  • Discovery – shows all Simple Paging components (not Paging Endpoint)

  • Status – of the device

  • Defaults – reset configuration to default values

  • Update – perform firmware update on the device

  • Reboot – restart the device

Illustration 6: Sample device UI Home page

8.1  Simple Paging web UI Configuration

8.1.1                   Basic Configuration: parameters

Click on the Web UI 'Configuration' tab, the browser will display the 'Basic' configuration view.

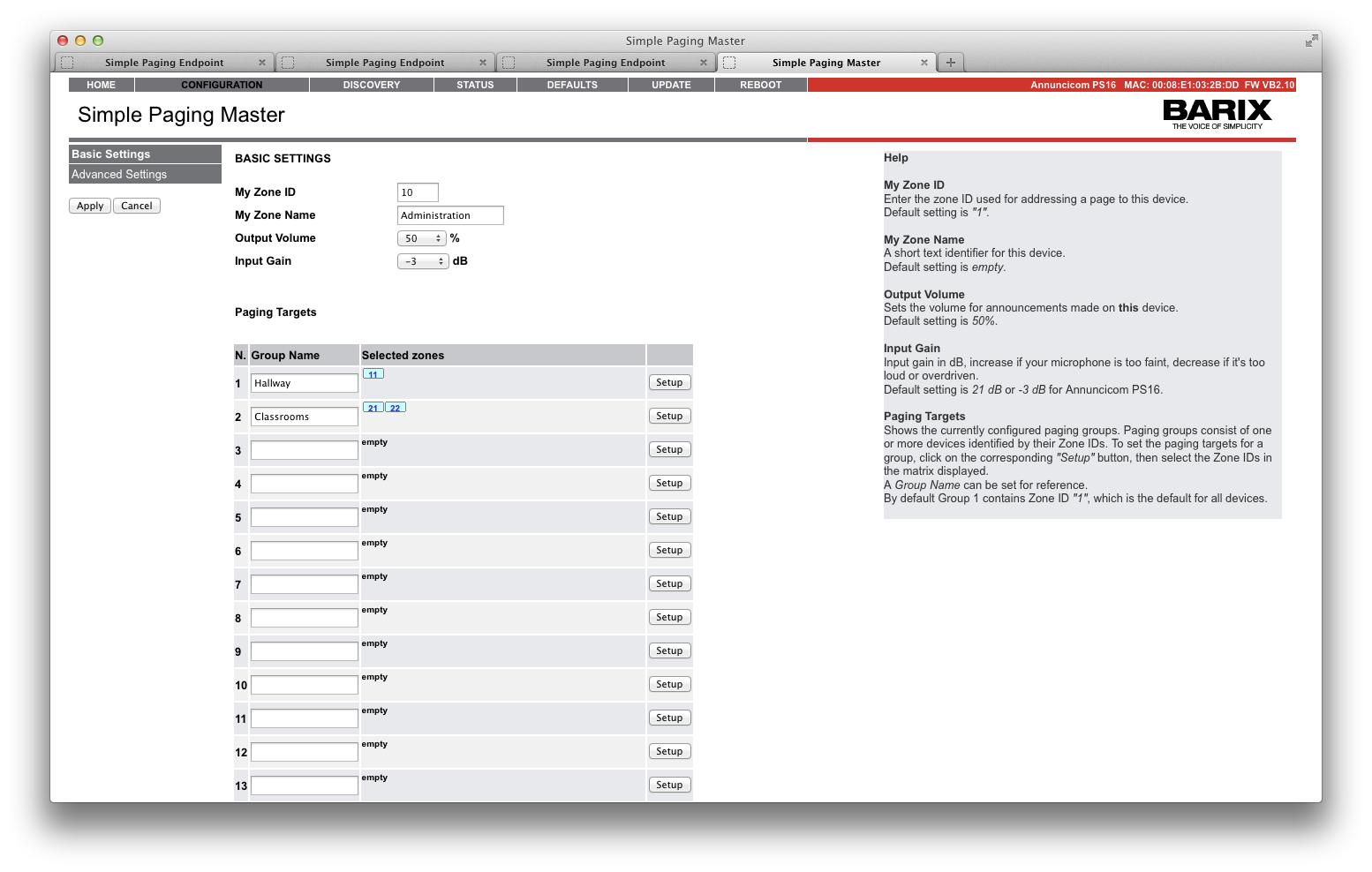

Illustration 7: Simple Paging Master basic configuration UI page


The Basic Settings tab allows you to set the:

  • Zone ID

  • Zone Name

  • Output Volume: the volume used for Paging Announcements (Not Paging Gateway)

  • Input Gain (not Paging Endpoint) (Not Paging Gateway)

To save changes, click on 'Apply'; the device will reboot.

For Master and Gateway devices, this page also shows the current Paging Group definitions and allows you to set names for Paging Groups, and gives access to configure the Groups, to allocate Paging Zones to the Groups.

By default just Group 1 is defined, including Zone ID 1. All other groups are empty.

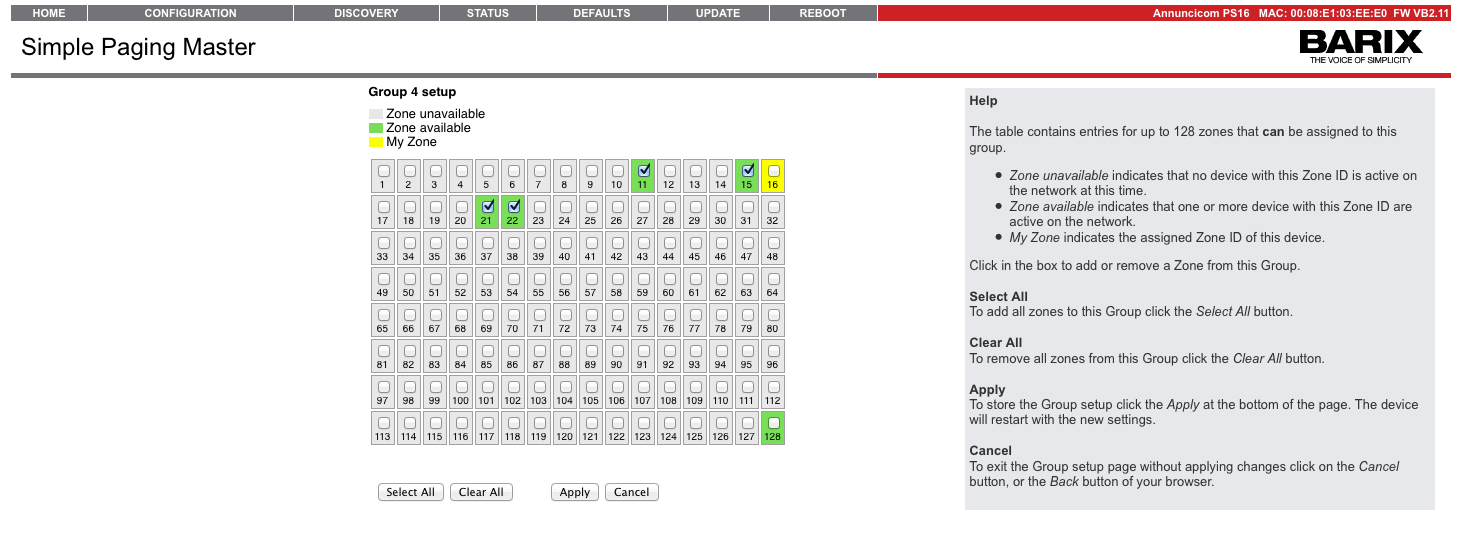

 8.1.2                   Basic configuration: Group Setup

Click on the “Setup” button for the Group you want to configure: the UI displays a matrix the same as that used in the Simple Paging Configuration tool, as shown below.

Click on the check boxes to add Paging Zones to the Group. A green background colour indicates that there is at least one device online with this Zone ID. A yellow background colour shows the Zone ID of the device being configured.

After selecting the Zones IDs to belong to the Group, click “Apply” to save the details. The device will reboot, saving the new Group definition. This process must be repeated for every Group to be set up. For this reason, it is recommended to use the Configuration Tool, as all Groups can be easily set in one operation.

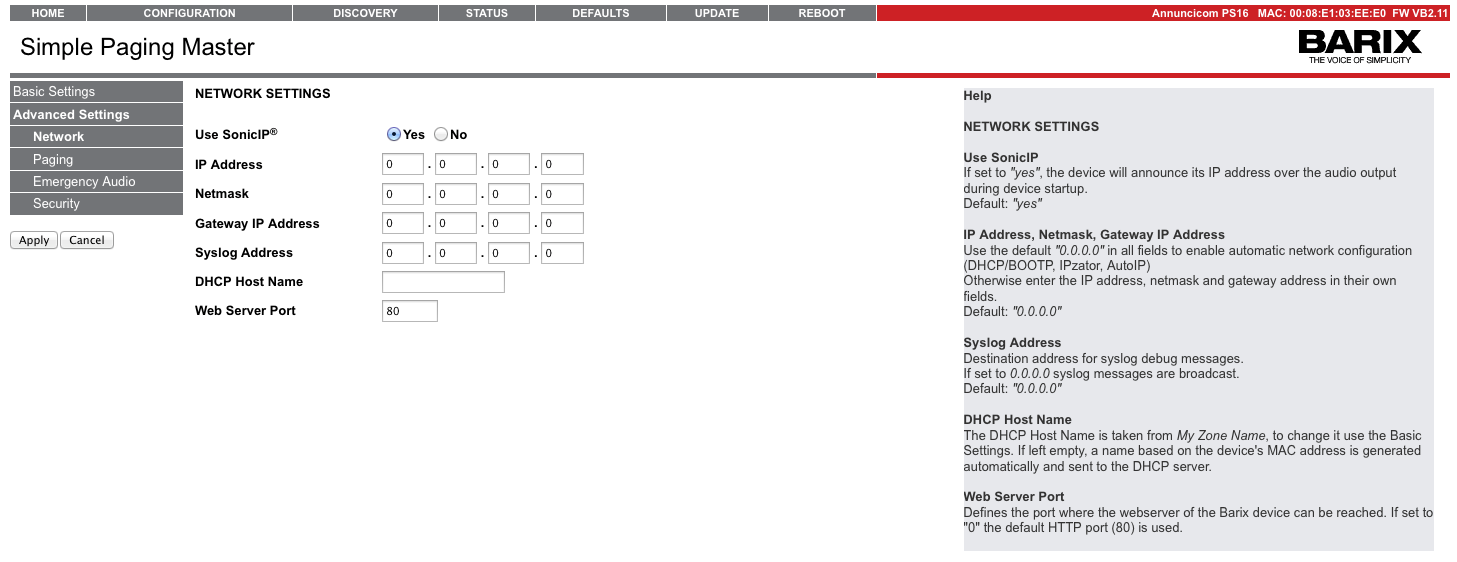

 8.1.3                   Advanced settings: Network configuration

From the Configuration page, click on 'Advanced'; further options will be displayed, starting at the Network Settings page:



  • Use SonicIP

If set to "yes", the device will announce its IP address during device startup. Default: "yes"

  • IP Address

Enter the desired device IP address e.g. "192.168.0.12" for an internal LAN.  "0.0.0.0" sets the device for automatic discovery using DHCP.  Default: "0.0.0.0"

  • Netmask

If DHCP is being used, then this can be left at the default 0.0.0.0, otherwise, enter the 4 values of the desired IP e.g. "255.255.255.0" for a C class network.

  • Gateway IP Address

Enter the 4 values of the desired Gateway IP address e.g.:

"0.0.0.0" for no Gateway

"192.168.0.1" for a Gateway in a LAN

Note: The Gateway has to be set only when connecting to other devices over the WAN (through a router).

Default: "0.0.0.0"

  • Syslog Address

Destination address for syslog messages. Set this to your syslog logging machine address, if your syslog messages are recorded centrally. If set to 0.0.0.0 syslog messages are sent over local network as a broadcast.

Default: "0.0.0.0"

  • DHCP Host Name

Name of the device sent in DHCP requests. If left empty, a name based on the device's MAC address is generated automatically. Enter up to 15 Characters.

  • Web Server Port

Defines the port where the web server of the device can be reached. If set to "0" the default HTTP port 80 is used. It is recommended to leave this alone if using the Configuration Tool.


8.1.4                   Advanced Settings: Paging

Click on the 'Paging' menu option.This option is not shown on Paging Endpoints – the Simple Paging control protocol ensures that the Endpoints listen out for announcements correctly.



  • Chime

The fixed head Simple Paging masters can play a two-tone chime before taking the audio from the microphone when an announcement is made. This 'pre-gong' is to attract listeners' attention before the announcement starts.

Default: enabled


  • Audio Destination IP

By default the Paging Head and Gateway devices send audio using the local network's broadcast address.

The broadcast address depends on the IP address and Netmask of the device. For example, if the IP address of device is 192.168.0.12 and the Netmask is 255.255.255.0, then the broadcast address will be 192.168.0.255. Configure this parameter to change this default behaviour, for example to use a multicast address.

The IP address set here will be used by this device to forward audio to the zones.

Default: 0.0.0.0

  • Audio Destination Port

Controls the UDP port number to be used for sending the audio. This may be required in the case that the local network has some restriction to use only certain port numbers. Otherwise leave this parameter untouched.

Default: 0

8.1.5                   Advanced Settings: Emergency Audio

Click on the 'Emergency Audio' menu option to access this function.

Many institutions have an emergency notification system, which is typically a single source distinct from the PA system with its multiple paging Heads and users.

Barix Simple Paging supports an Emergency Notification socket, which will receive an RTP audio stream on a configurable IP address:Port.

Audio received on this socket has the highest priority and is relayed immediately by all Barix Simple Paging hardware, irrespective of whether they are playing background music, or if an announcement is in progress.

Note:

 1.     each audio source has an associated volume; typically Emergency messages will be at a higher volume than BGM or standard Paging announcements

 2.       The incoming audio for BGM and Emergency Audio must be an RTP stream in a Barix supported audio format: mp3, PCM uLaw/aLaw

 3.        Emergency audio has the highest priority and will override any other audio source,

A Paging message has middle priority – will interrupt BGM playback, but in turn be dropped if an Emergency Announcement is made

Background Music has the lowest priority and only plays if no other source is active.

8.1.5.1            Setting up a Simple Paging device to receive Emergency Notification audio

The Emergency Notification socket needs to be defined individually on every device that you wish to relay the emergency notifications on.

  • Enter the IP Address and port number of the Emergency Audio source. Multicast addresses are supported.

  • Set  the desired volume for Emergency Notifications: typically this will be louder than either BGM or Paging Announcements

  • Click on 'Apply', the device will save the changes and restart. The device is now set up with an Emergency Notification channel that will override all other audio playback.

 8.1.5.2            Device behaviour with Emergency Audio

The Simple Paging system has 3 levels of audio priority, Emergency Audio is the highest. When the device receives an RTP stream in a supported format on the configured Emergency Audio socket, it will immediately relay it at the configured Emergency Audio volume. The device status is shown as 'Playing Notification' for as long as an audio stream is received on this socket.

8.1.6                   Advanced Settings: Background music and PA integration

Click on the 'Background Music' menu option to access this function.

Many institutions use Background Music to create a suitable ambience throughout the facility, typically playing different audio in different zones.  Barix Simple Paging supports this, allowing users to personalise Background Music right down to individual device level.

Each Barix Simple Paging Endpoint supports a Background Music socket to receive an RTP audio stream on a configurable IP address:Port. The audio playback is made at a configured Background Music volume.

Audio received on this socket has the lowest priority and is played only if there is no active Paging announcement or Emergency Notification in progress.

Note:

 1.    Each audio source has an associated volume; typically Emergency messages will be at a higher volume than BGM or standard Paging announcements

 2.    The incoming audio for BGM and Emergency Audio must be an RTP stream in a Barix supported audio format: mp3, PCM uLaw/aLaw

 3.    Paging Master stations do not support Background Music playback.

 4.    Emergency audio has the highest priority and will override any other audio source,

A Paging message has middle priority – will interrupt BGM playback, but in turn be dropped if an Emergency Announcement is made

Background Music has the lowest priority and only plays if no other source is active

8.1.6.1            Setting up a device to receive Background Music

The Background Music socket needs to be defined individually on every Simple Paging Endpoint that is required to play Background Music.

  • Enter the IP Address and port number of the Background Music source. Multicast addresses are supported.

  • Set the desired volume for music playback; this is different to the Paging and Emergency Notification volumes.

  • Click on 'Apply', the device will save the changes and restart. The device is now set up to play Background Music.

8.1.6.2            Device behaviour with Background Music

The Simple Paging system has 3 levels of audio priority with Background Music having the lowest.

When the device receives an RTP stream in a supported format on the configured Background Music socket, it will immediately play it at the configured Background Music volume. The device status is shown as 'Playing BGM' whilst this audio stream is played on this socket.

Any Paging announcement or Emergency Audio will cause immediate interruption of the BGM playback, the Simple Paging Endpoint will play out the higher priority audio before returning to Background Music playback.

8.1.7

8.1.8                   Advanced Settings: Security



  • Set Password: Paging Gateway device

The password set on the Paging Gateway device is used to control paging announcements made from iDevices.

If no password is set on the Paging Gateway, any iDevice with the free Paging App will be able to make announcements! For this reason, a password must be set at least on the Paging Gateway.



  • Set Password: Other devices

It is recommended that all the system devices are password protected. Using a shared password makes working with the configuration tool simpler.

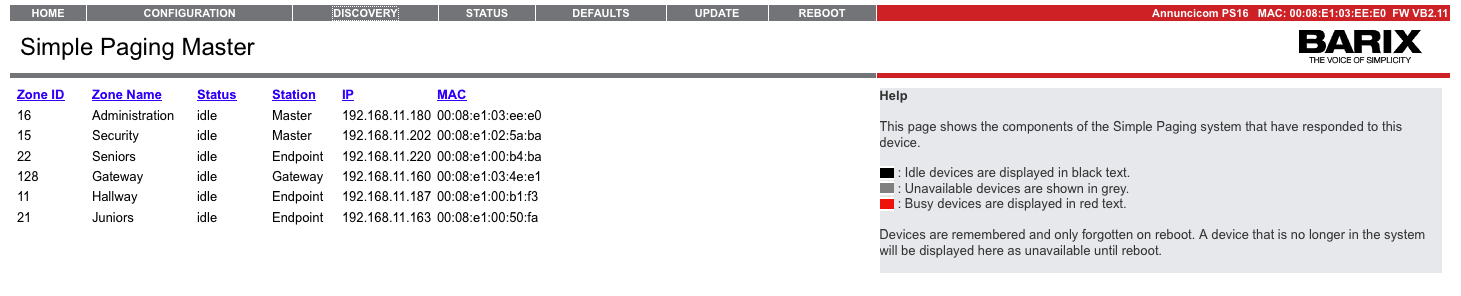

8.1.8.1            Discovery function

This tab shows the list of simple paging devices online on the local network, reporting the following parameters for each device:

  • Zone Id

  • Zone Name

  • Status: “idle”,”busy” or “Unavailable”; this status refers to Paging messages only

  • Station: This is the type of device; “Gateway”, “End Point” or “Master”.

  • IP: The IP address of the device.

  • MAC: the mac address of the device.

8.1.8.2            Status Page

Click on this tab to see a summary of the system status and working configuration.

The page shows information in three main groupings:

  • Device information: uptime, hardware information, base firmware information

  • Application status

  • Application configuration

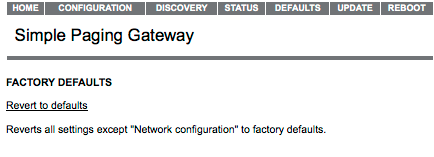

8.1.8.3            Defaults

Clicking on Defaults displays a page that allows the user to reset the firmware to the factory default settings, which can be useful when errors in configuration are giving problems. Note, this software-controlled action does NOT affect the network settings, so that there is no danger of losing access to the device!

Factory Defaults



Factory Defaults

Click on "Revert to defaults" to revert all settings except "Network configuration" to factory defaults. While restarting the device a screen appears showing a number counting down.

On startup, a screen appears confirming the successful application of factory defaults.

This function is important when changing firmware types, since they use the device memory differently. If factory default settings are not applied when a new application is loaded, the new application might not work correctly.

Hard default settings

To revert all settings (including the "Network configuration") to factory defaults the Reset

button has to be pressed for about 10 seconds while the device is powered. Restoring the factory defaults using the Reset button is not possible if the “Factory Default” option in the “Security” web page is disabled.

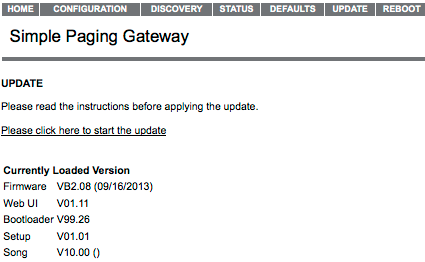

 8.1.8.4            Update

Clicking on the “Update” button displays functionality to update the device firmware. Visit the “BarixAG” youtube channel to see a video demonstrating this process.



  • Click on "Please click here to continue" to start the update process. Before you click the link note that once started, the update process can only be cancelled by power cycling the device.

  • The device will restart in a special mode called Bootloader and a screen appears showing a number counting down. In Bootloader mode the standard http port 80 is always used.

  • To upload a resource click on "Browse..." to locate the firmware or application file you want to update. Once selected, click on "Upload". This process can take a few minutes. After a successful upload the following text appears:

"Resource" successfully loaded.

Click on update before updating the next component or
unplug the power supply to reboot the device.


If you choose "update" you may upload another resource, or click the "reboot" button.
If you choose to reboot the following text appears:

rebooting...

Click here to reload the main page.

The device takes a few seconds to reboot. If you have a fixed IP address or DHCP resolves to the IP address used before, the main page will appear.

  • When changing firmware types, it is recommended to restore factory defaults after uploading firmware, to avoid any unexpected behaviour.

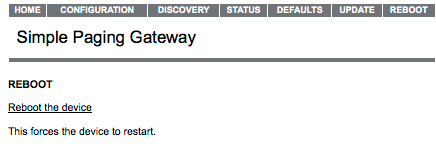

 8.1.8.5            Reboot

Click on the link “Reboot the device” to reboot the device.


9       Document Management

9.1  Version History

Version

Author

Description

Date

1.0

DG

First release

6th December 2013

1.1

DG

Addition of Pre-gong,  Emergency Notification and Background Music features

26th March 2015

1.11

SG

Add info about multi-master addressing and Android support

19th February 2018

Table 3: Document version history

Compliance and further Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.

  • Increase the separation between the equipment and receiver.

  • Connect the device into an outlet on a circuit different from that to which the receiver is connected.

  • Consult the dealer or an experienced radio/TV technician for help.

Safety and precaution recommendations apply. Find them in the download section at www.barix.com

Find your distributor on this list for more hardware.

For questions that are extending the documentation, feel free to contact us on:

International: +41 434 33 22 22
USA: +1 866 815 0866
Email: support@barix.com

All information and the use of this product including all services are covered under the Barix Terms & Conditions and our Privacy Policy. Please follow the Safety and Precaution Recommendations. Barix is a ISO 9001:2015 certified company. All rights reserved. All information is subject to change without notice. All mentioned trademarks belong to their respective owners and are used for reference only.

JavaScript errors detected

Please note, these errors can depend on your browser setup.

If this problem persists, please contact our support.
