Quick Install Guide



Congratulation for buying the Exstreamer Store&Play.

The Exstreamer Store&Play automatically downloads audio tracks and playlists via IP networks and schedules the playback of the received audio files. It combines the traditional Store&Forward functionality with the ability of decoding live HTTP or RTP streams, taking advantage of both playback modes on a single device.

We hope you find a quick start with this product. If you have any feedback or questions, write us at support@barix.com.

Do not remove or change or otherwise handle the battery in the device in any way, which syncs the clock when off-grid.

Table of Contents


Package Content and Accessories

Package contents

  • Exstreamer Store&Play

  • Power supply (except NoPSU version)

  • MicroSD internal memory card (except NoSD version)

Needed materials


  • Earphone

  • RCA Stereo cable

  • Network cable

  • Serial cable



Device functionality

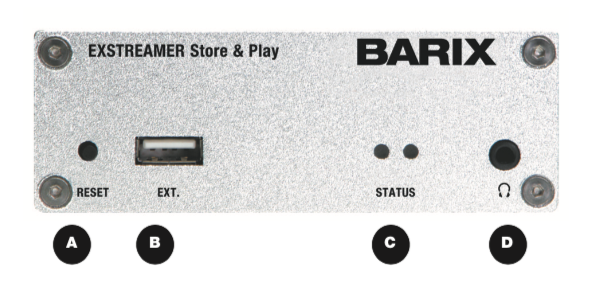

Front view

Rear view

A  Reset button

A brief press of the button will reset the device. Holding the reset button pressed in for 10 seconds (until the red LED starts flashing) will reset the device and restore the factory default settings when the button is released.

B  EXT.

Interface to connect USB 2.0 devices, e.g. for flash memory sticks (not supplied)

C  Status LEDs

Green and red LEDs for status display

D  Headphone out

Standard stereo mini jack (3.5 mm)




E  Line out

Stereo RCA line outputs

F  RS-232 serial port

(DSub 9 pin male)

Pin

Description

1

Not connected

2

Receive Data [RxD]

3

Transmit Data [TxD]

4

 V+ 5V, 100mA max

5

Ground [GND]

6

Not connected

7

Ready to Send [RTS]

8

Clear to Send [CTS]

9

Not connected

G  LAN port 10/100

(RJ45 Ethernet socket)

Description

1

Tx +

2

Tx -

3

Rx +

4

Not connected

5

Not connected

6

Rx -

7

Not connected

8

Not connected


H  Power

Standard microUSB, 5 VDC, 2 Watt max.

I  LAN status LEDs

Green LED for Link status, yellow LED for Activity status



Installation

STEP 1

Plug a standard (straight) network cable (f, not included) into the network port (G) of the Exstreamer and the other end into the hub or switch. A crossover network cable (not included) can also be used for a direct connection to the PC.

STEP 2

  1. Plug standard headphones or the earphone (d, not included) into the headphone output (D) and listen.

  2. Plug the RCA cable (e) into the LINE OUT outputs (E) and connect the cable to inputs of your mixing console or monitoring device.

  3. Remove plastic strip coming out next to RS-232 connector (F) to initialize RTC battery.

OPTIONAL: Plug a USB memory stick containing at least the configuration file (player.cfg). If the playlists (.M3U) and corresponding audio tracks (.MP3) are already on the USB stick, the device won’t have to download them from the content server before starting playback.

The Exstreamer Store&Play includes an internal microSD memory card (except NoSD model) that can be used as local storage instead of the USB memory stick.

STEP 3

Connect the Power supply (b) to the device (socket H) and then to an appropriate electrical outlet.

STEP 4

  1. The Exstreamer Store&Play will now acquire an IP address and announce it over the audio outputs. DHCP is the default method for acquiring automatically an IP address from the DHCP server in the network.

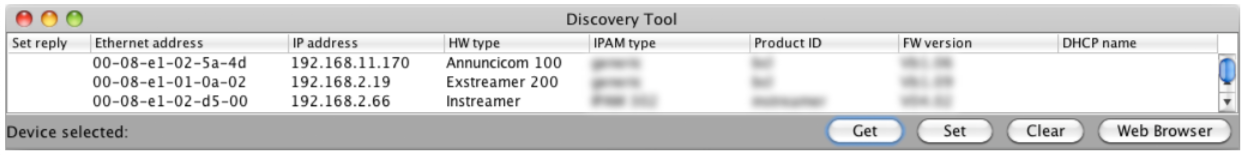

  2. If audio outputs were not connected in Step 2 and the SonicIP® announcement of acquired IP address was not heard, it is recommended to use the “Barix Disco very Tool” Java application (download the latest version from help.barix.com/tools/discovery-tool under “Software Tools” in “Downloads” section) on your computer (Windows, Mac or Linux) and click the “Get” button to find out which IP address the device has obtained (see picture at the bottom of the page). Make sure that the Ethernet address (MAC) matches the one of the device (see label on the bottom of the device).

Now that the IP address of the Exstreamer Store&Play is known, it is time to proceed to the next section for “Network configuration via web browser”. If the device’s current IP address was not discovered with the previous steps, see section ”Troub- leshooting”.

Network configuration from web browser

The BARIX Store&Play application does not require any initial network configuration since it’s using DHCP by default to configure network settings dynamically. If a static (fixed) network setting needs to be used, please follow steps 1 to 3, otherwise continue from step 4.

STEP 1

Open a web browser and type the IP address that was announced by the Exstreamer Store&Play during boot-up (e.g.: 192.168.0.12) and press Enter.

STEP 2

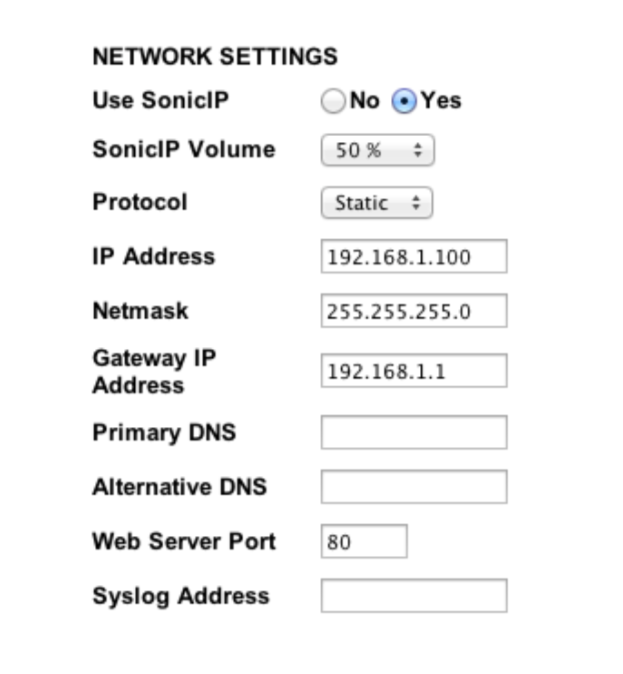

Click on the “SETTINGS” tab and select “Static” on the drop-down menu next to “Protocol” field (by default is set to “DHCP”) under the
“NETWORK SETTINGS” section.

STEP 3

Set the IP Address, Netmask, Gateway, Primary DNS and Alternative DNS. Specifying the web server port to be used (default port is 80) is also possible. Syslog messages are sent from the Store&Play device to the destination IP address of the device where you will be collecting them.

STEP 4

Click “Submit” at the bottom of the page for the changes to take effect.

Please download the Store&Play User Manual for more details about further configuration options.

Troubleshooting

  • If the status LEDs (C) stay dark check the powercabling (installation step 3).

  • Check if the green LINK LED (I) is lit, if it is not thencheck your network cabling (network port G)

  • If current device settings are uncertain, the device can revert to its factory defaultsby pressing the Reset button (A) until the red status LED (C) blinks (takes about 10 seconds). The device will restore the factory defaults once the button is released.



Compliance and further Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.

  • Increase the separation between the equipment and receiver.

  • Connect the device into an outlet on a circuit different from that to which the receiver is connected.

  • Consult the dealer or an experienced radio/TV technician for help.

Safety and precaution recommendations apply. Find them in the download section at www.barix.com

Find your distributor on this list for more hardware.

For questions that are extending the documentation, feel free to contact us on:

International: +41 434 33 22 22
USA: +1 866 815 0866
Email: support@barix.com

All information and the use of this product including all services are covered under the Barix Terms & Conditions and our Privacy Policy. Please follow the Safety and Precaution Recommendations. Barix is a ISO 9001:2015 certified company. All rights reserved. All information is subject to change without notice. All mentioned trademarks belong to their respective owners and are used for reference only.
