Barionet temperature monitoring with Node-RED, InfluxDB and Grafana

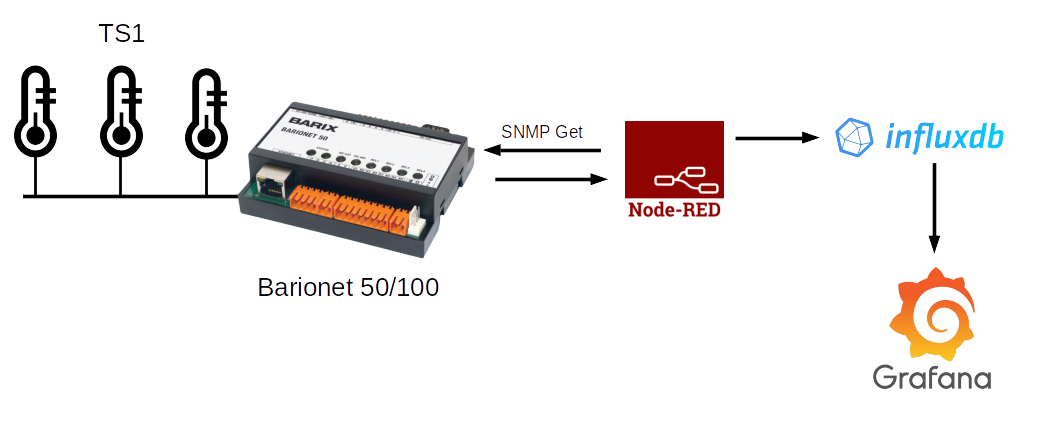

We will describe here how to build a system with Node-RED, InfluxDB and Grafana to monitor TS1 temperature sensors connected to Barionet 50 or 100.

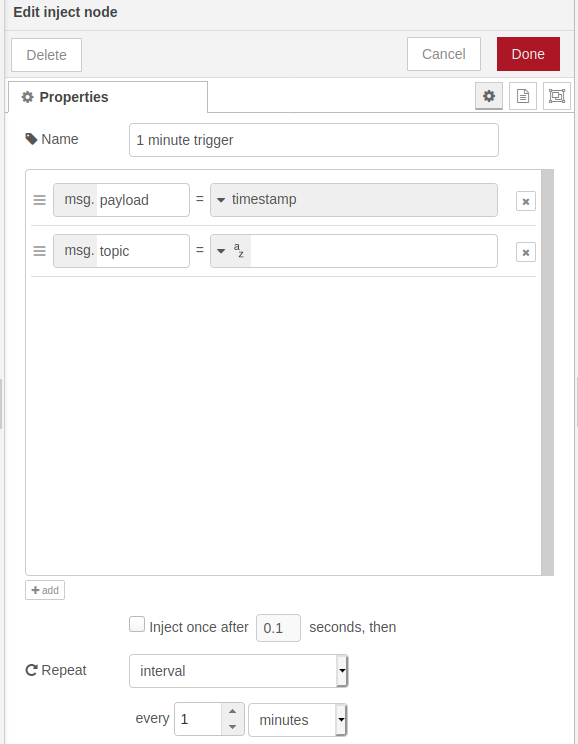

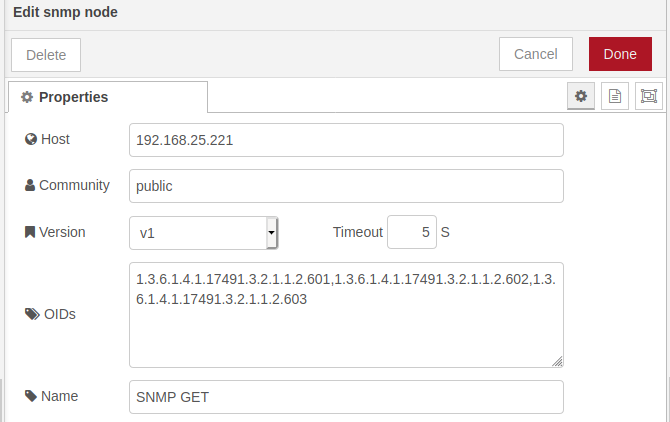

Node-RED retrieves the data every minute via SNMP using these three OIDs (601, 602, 603 are Barionet registers corresponding to the three TS1):


  • 1.3.6.1.4.1.17491.3.2.1.1.2.601
  • 1.3.6.1.4.1.17491.3.2.1.1.2.602
  • 1.3.6.1.4.1.17491.3.2.1.1.2.603

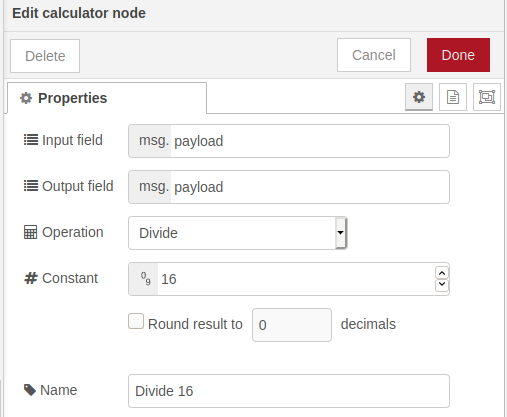

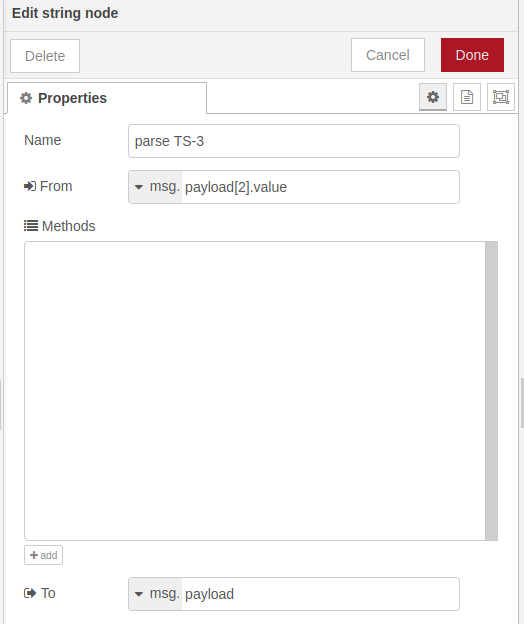

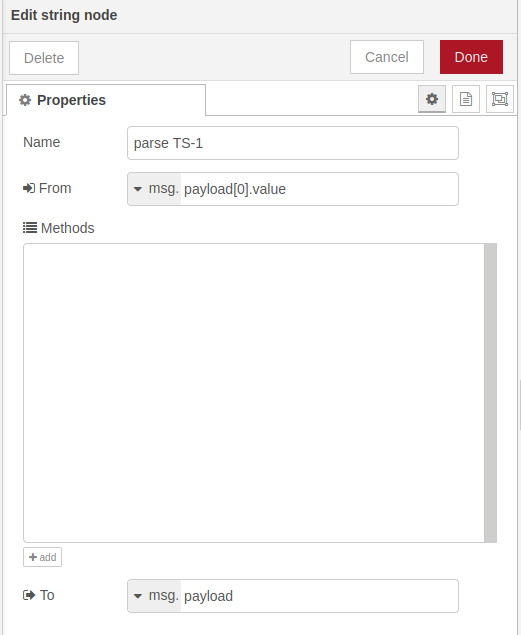

The received data are parsed to retrieve the values of the three sensors; then each value is divided per 16 to have the celsius value.

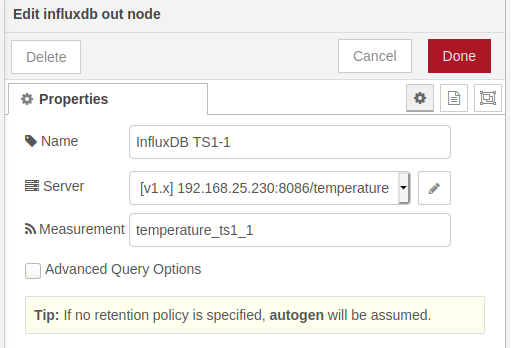

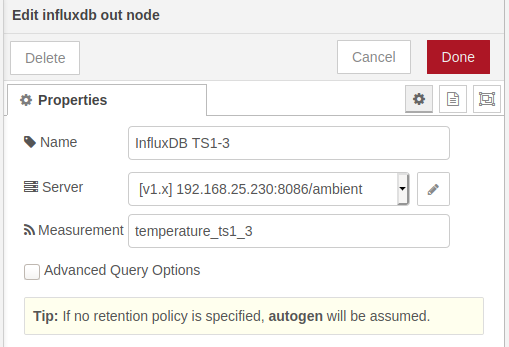

The celsius value is then sent to the InfluxDB "temperature" database.


Node-RED configuration

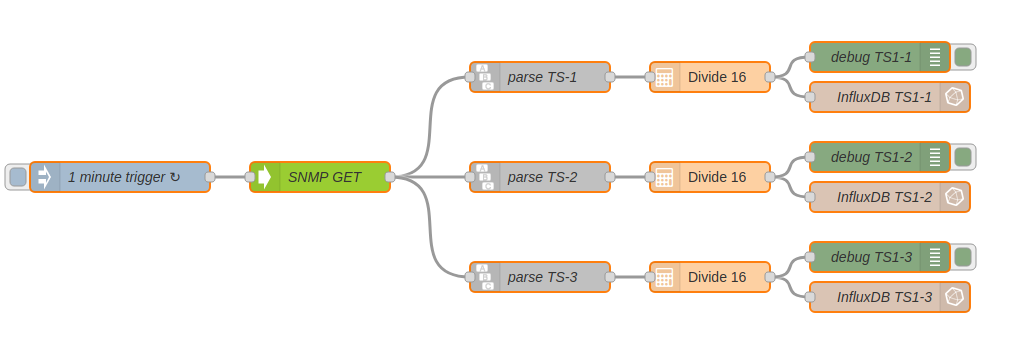

Here you can download the complete flow: flows.json

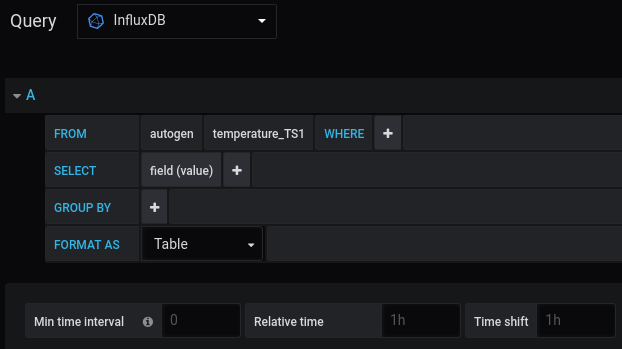

Grafana configuration



PANEL JSON

CODE
{
  "datasource": "InfluxDB",
  "cacheTimeout": null,
  "description": "",
  "gridPos": {
    "h": 7,
    "w": 5,
    "x": 3,
    "y": 127
  },
  "id": 71,
  "links": [],
  "options": {
    "showThresholdMarkers": true,
    "showThresholdLabels": true,
    "fieldOptions": {
      "values": false,
      "calcs": [
        "last"
      ],
      "defaults": {
        "min": -10,
        "max": 50,
        "thresholds": [
          {
            "color": "dark-green",
            "value": null
          },
          {
            "color": "dark-blue",
            "value": -10
          },
          {
            "color": "#6ED0E0",
            "value": 0
          },
          {
            "color": "green",
            "value": 10
          },
          {
            "color": "#EAB839",
            "value": 25
          },
          {
            "color": "dark-red",
            "value": 30
          }
        ],
        "mappings": [],
        "decimals": 1,
        "unit": "celsius"
      },
      "override": {}
    },
    "orientation": "auto"
  },
  "pluginVersion": "6.5.2",
  "targets": [
    {
      "alias": "Ingresso",
      "groupBy": [],
      "measurement": "temperature_TS1",
      "orderByTime": "ASC",
      "policy": "autogen",
      "refId": "A",
      "resultFormat": "table",
      "select": [
        [
          {
            "params": [
              "value"
            ],
            "type": "field"
          }
        ]
      ],
      "tags": []
    }
  ],
  "timeFrom": null,
  "timeShift": null,
  "title": "Temperature",
  "type": "gauge"
}
