Quick Install Guide M400



Package content and Prerequisites

  • M400 SIp Opus Codec Device

  • Power supply

Material that might be needed:

  • Ethernet cable

  • 8 Ohm Speaker

  • Push button to be used as digital input

  • Headphones




Setup the Device as Decoder

Step 1

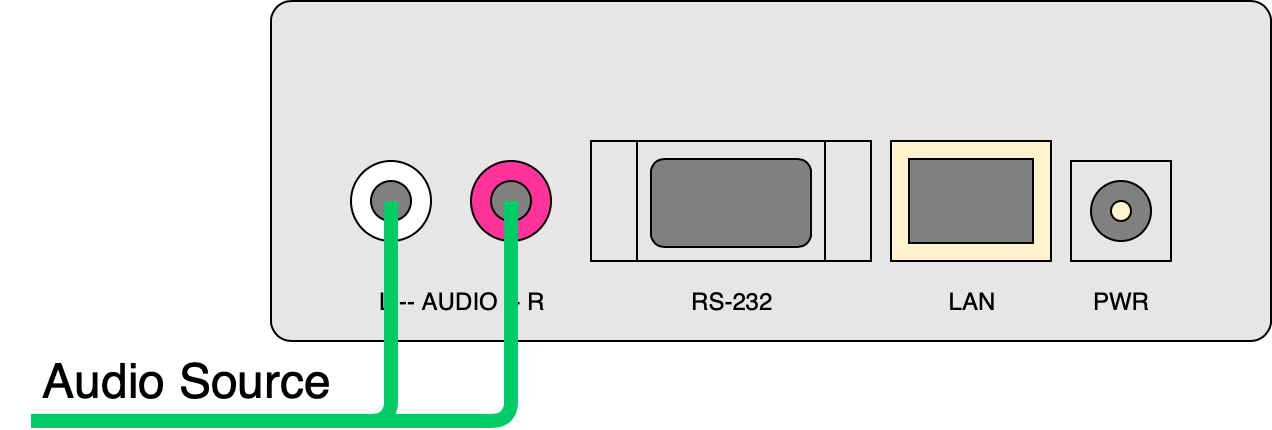

The SIP OPUS Dencoder is a decoder by default. Connect the Line In of your stereo audio amplifier to the two cinch connectors.

Step 3

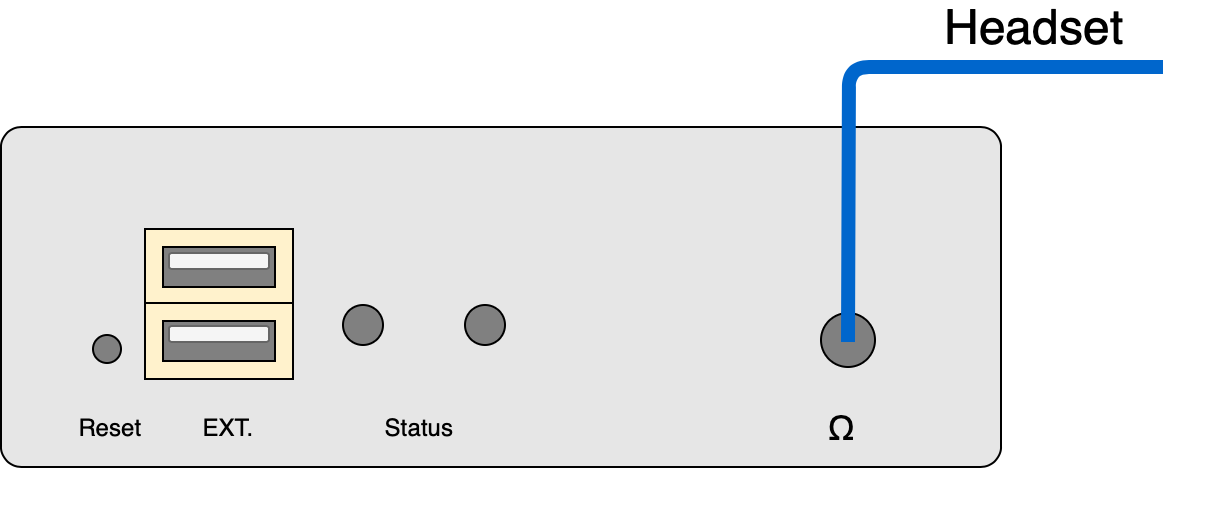

Connect a headset to the connector on the front panel to listen to the IP-Address of the device.

Step 4

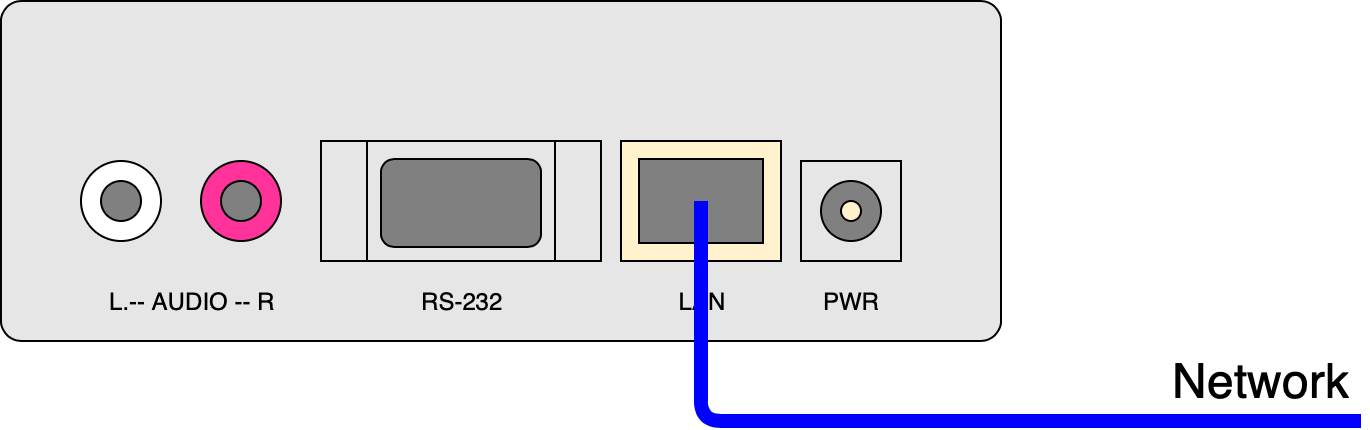

Connect the M400 SIP Opus Codec to your network using a standard Ethernet cable.

Step 5

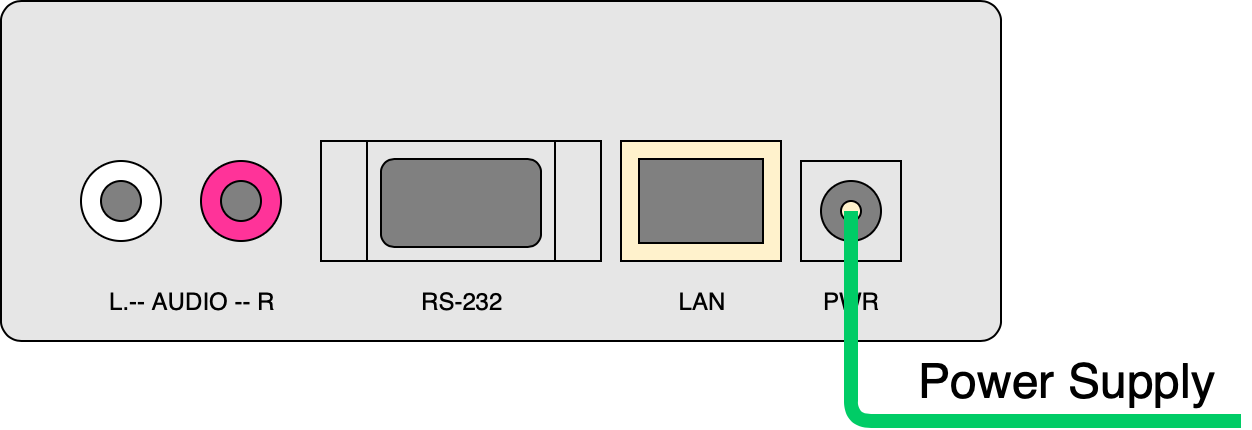

Connect the 5V power supply to the device and then to an appropriate electrical source. While the device is booting you should hear the IP-Address announced at startup (DHCP by default). You can connect to the device by putting the IP-Address into a Browser as described later at the configuration part.

When LED1 becomes solid green, the system is up and running.



Get your SIP account details ready

Contact your SIP provider, (or ask your network administrator to do it) and ask for the following details:

  • SIP server name or IP address (mandatory)

  • SIP user ID (mandatory)

  • SIP user password (mandatory)

  • SIP Authentication User ID (optional, only if used)

  • SIP proxy (if used)

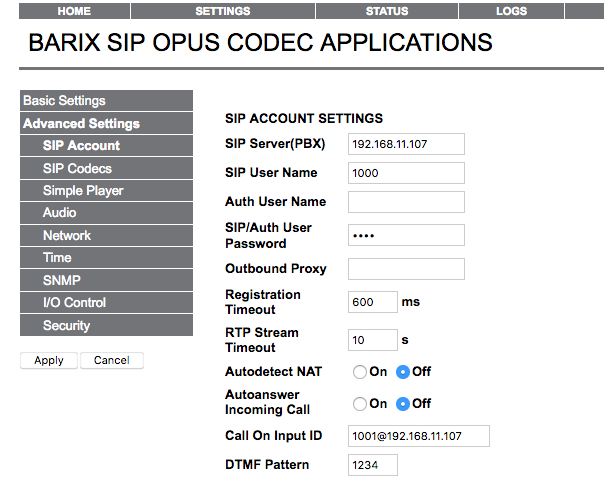

After collecting these data, open the device web page on the IP address you have noted during the device boot, then navigate to the SIP account setting by clicking on the SETTINGS, then Advanced Settings → SIP Account. Enter the data in the relevant fields shown in the picture below:


After entering the required data, click on the "Apply" button, and wait for the SIP OPUS Codec application to be restarted. If the data are correct, and the device registers successfully to the SIP server, LED2 shall be steady green, showing that the device is registered.

TODO: add a picture showing LED1 red, and LED2 green

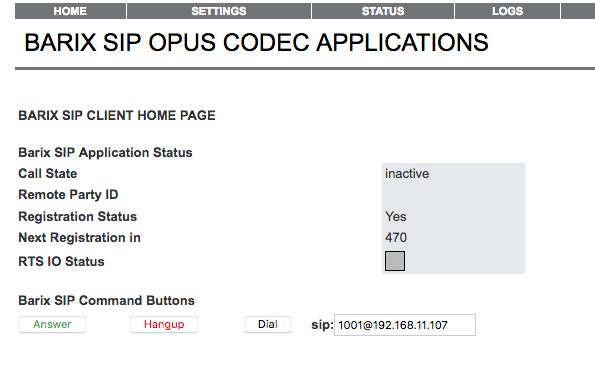

The web page shall show "inactive" as "Call State". and "Yes" as "Registration Status"

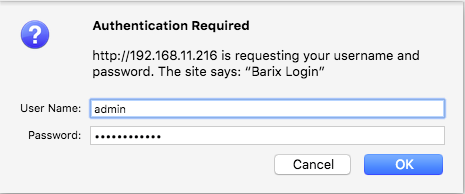

NOTE: The device web page might be protected by a password. If your browser shows "Authentication Required" pop-up box, then enter "admin" as "User Name", and type the password, delivered with your device (marked as "PW" on the small sticker below the device).

Using the SIP OPUS Dencoder

Making a call

...from the web interface

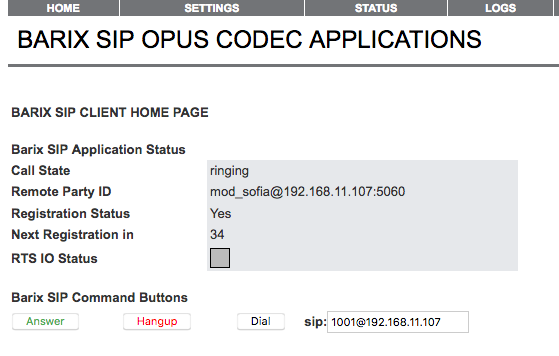

Open the home page of the device. If you haven't configured from the Advanced Settings→SIP account page, then you can enter on Barix SIP Command Buttons  section the ID of the remote peer to be called. The ID must be in the format: SIP-ID@sip.server.name (for example: 1001@192.168.11.107). Next, click on the "Dial" button to initiate the call. The call Status shall change to "ringing", then to "active" once the call is accepted by the remote peer.

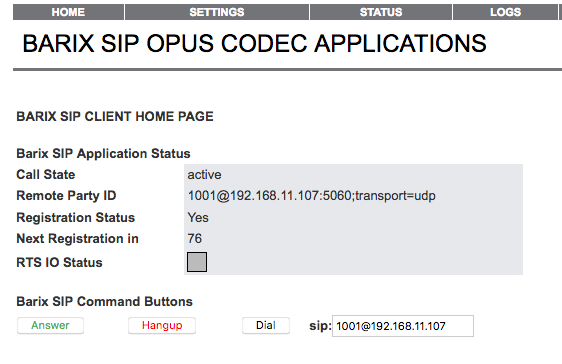

Once the call is established, LED2 on the front panel of the device shall start blinking green indicating there is active call.


To close the call, click on the "Hangup" button.


...using the RTS pin digital input

If you have connected a push button to the RTS pin of the RS-232 DB9 connector, and you have set a valid Call On Input ID, it shall be enough just to press the button, and your device will starts the call. You can press the button again to cancel the call. Please note that the Call On Input ID (on SIP Account section) must be already configured and saved, or the device will not be able to dial. Press the digital input button again to close the call.


NOTE: Once the call is established, LED2 shall be blinking green to indicate the active call state.

LED1 red, and LED2 blinking


Receiving a call

... from the web interface

Open the home page, and while the device is ringing, just click on the "Answer" button, The device LED2 shall start blinking green, indicating that there is active call.

... using the RTS pin digital input

While the device is ringing, just push the digital input button to answer the call. To close the call, press the button again.

... using the auto-answer feature

Go to the SETTINGS→Advanced Settings–>SIP Account on the web page, and set the "Autoanswer Incoming Call" to "On". Click "Apply" and wait for the application to restart.

Now when you dial your device from another SIP phone, it shall automatically pick-up the call.


Listening to RTP/HTTP Stream

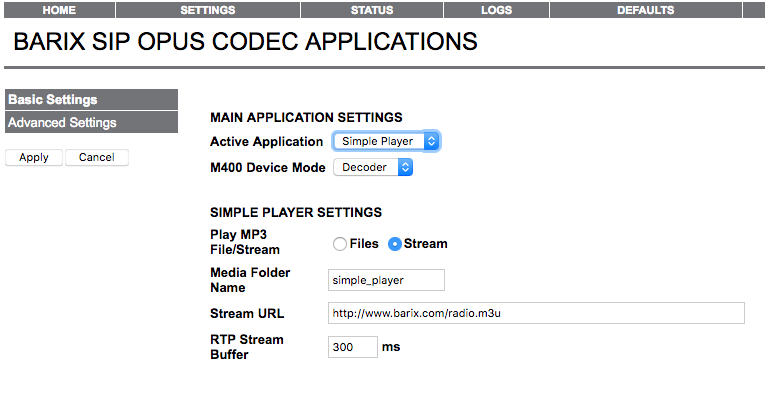

Open the device web page, then go to SETTINGS→Basic Settings, and set the "Active Application" to "Simple Player". Configure the desired Stream URL, then click the "Apply" button. The device will stop the SIP Opus Client, and start the Simple Player application. When the Simple Player connects to the URL, the device LED2 shall start blinking green, indicating there is an active playback.



Reset

Through the Web UI

Access the Web UI with the password on the back of the device. Go to the DEFAULTS tab and click on "Reset Factory Defaults" button. The device will reboot and the settings are restored to default.


Through the Hardware Button

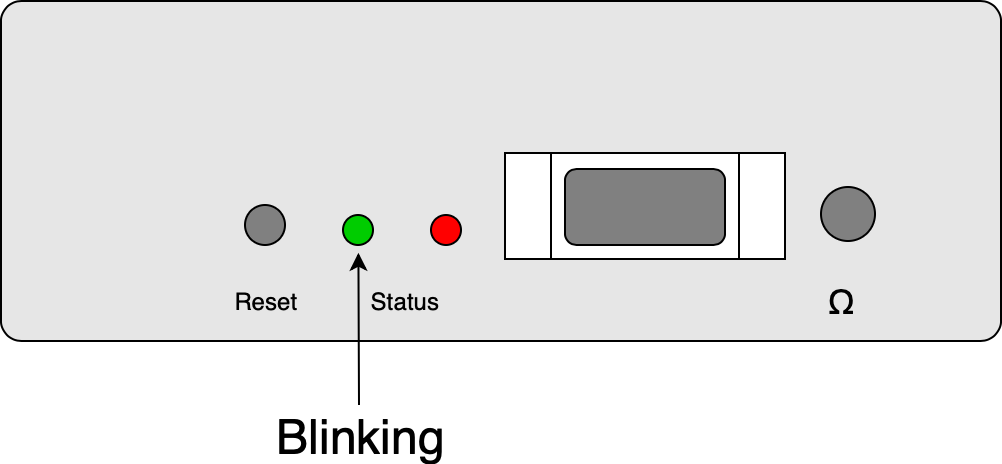

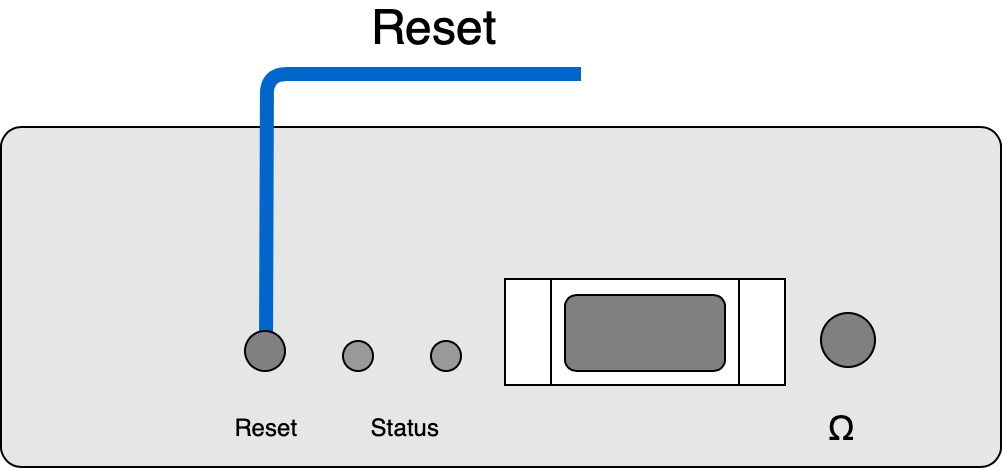

Push the reset button on the front panel for at least 10 seconds until LED1 is blinking green. Release the reset button, the device will restart and the settings are restored to default.
