How to mount the ESD protection springs?


This how-to will guide you step by step to mount the Barix ESD protection enhancement springs.

The application of the springs will enhance the ESD protection by making a better connection between the shielding of the RS-232 connector and the device enclosure (aluminum housing). Note that this does NOT alter the insulation between device shielding and the internal ground (analog / digital signal ground).

The springs can be requested directly from Barix using either this online form, this email form or by sending an email to (Click here for a sample body text).

To enlarge click on any of the photos.

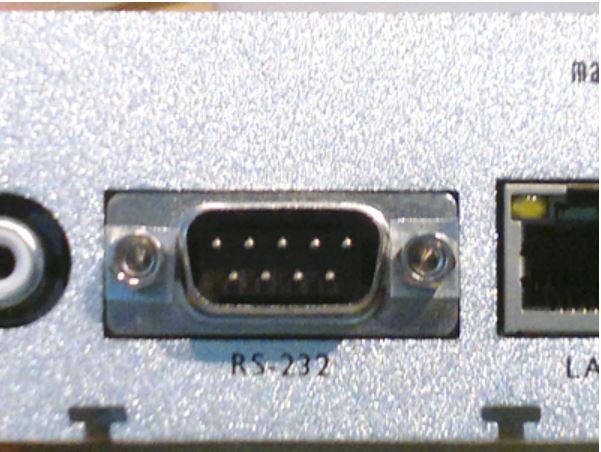

Step 1: Preparation

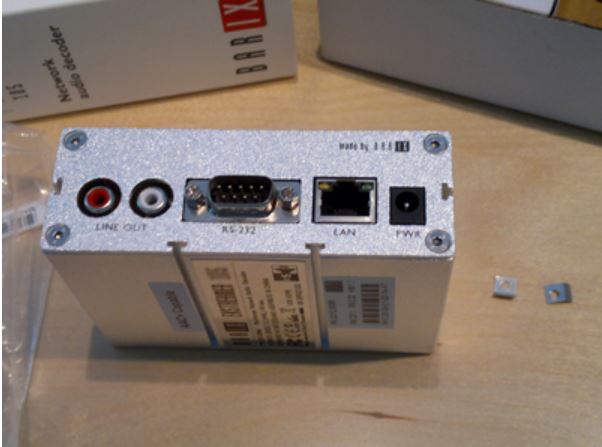

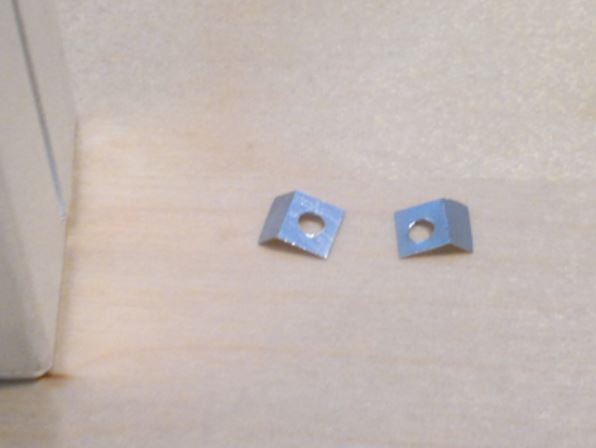

Unpack the device and the springs. Place the device on the table with the rear plate facing up.

Step 2: Unscrewing the bolts

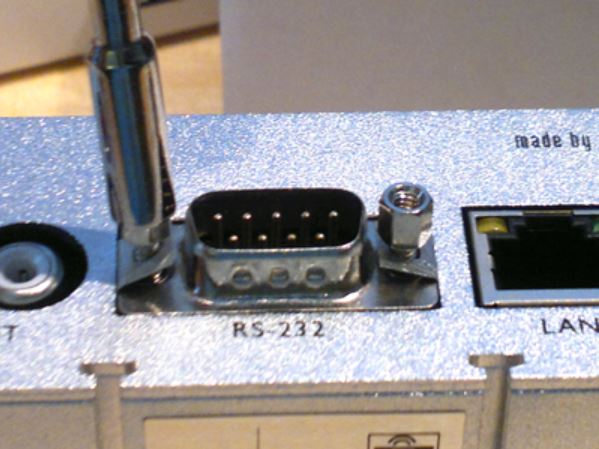

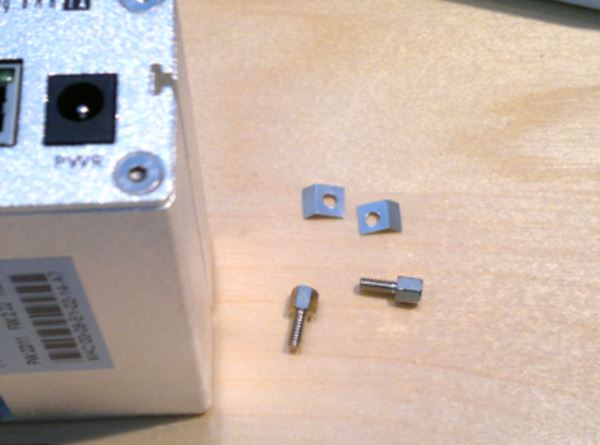

Use appropriate tools to unscrew the left and right Dsub bolts of the RS-232 connector. Place the bolts aside for mounting in the final steps.

Step 3: Placing the springs

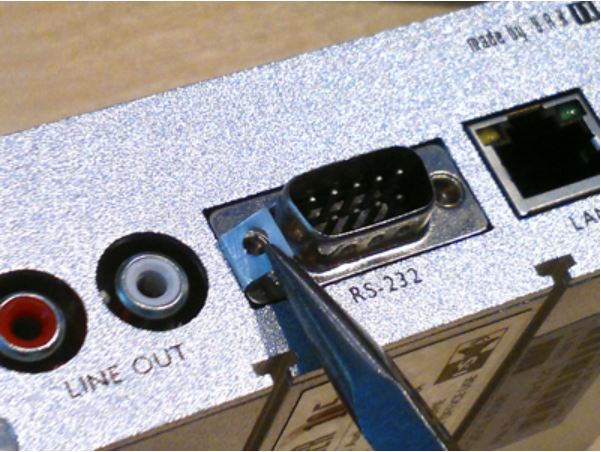

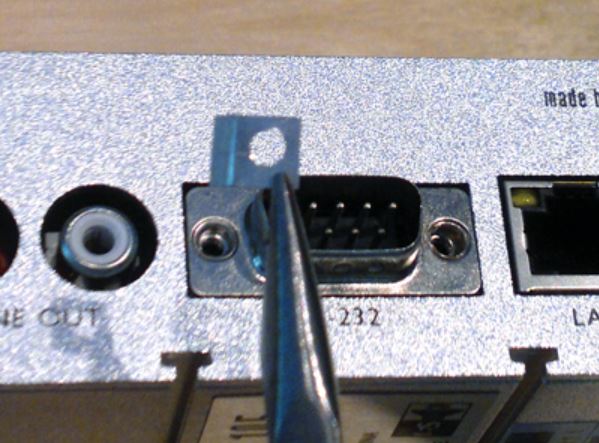

Use pliers or a tweezer to place the springs in the slot between the RS-232 connector and the enclosure.

  • The bent part with the screw hole must be placed facing up!

  • Place the spring to fit the screw hole for easy mounting of the bolts.

  • Production tolerances might prevent you from placing both spring which is ok as long as one spring is touching the enclosure.

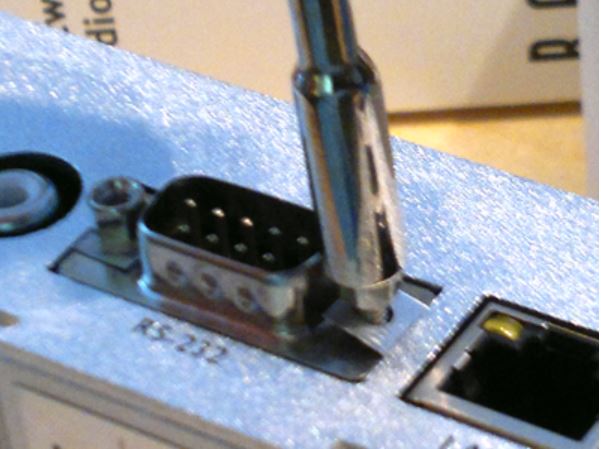

Step 4: Screwing back on the bolts

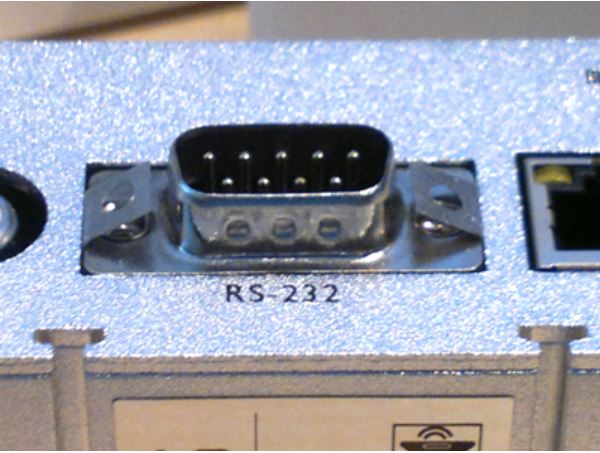

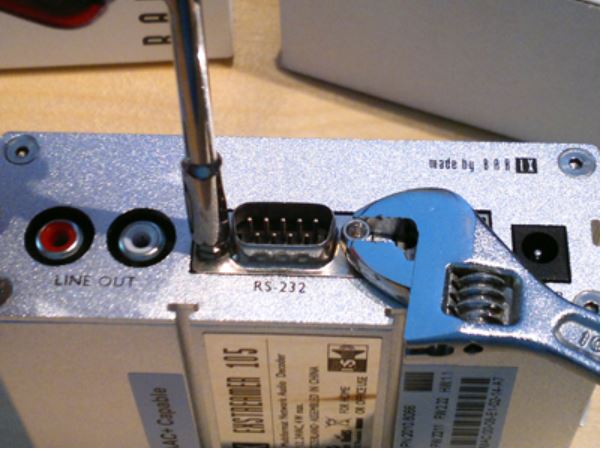

Use appropriate tools to screw back on the left and right Dsub bolts of the RS-232 connector.

  • Place both bolts in loosely before tightening them!

  • Tighten both bolts to prevent accidental untightening.
